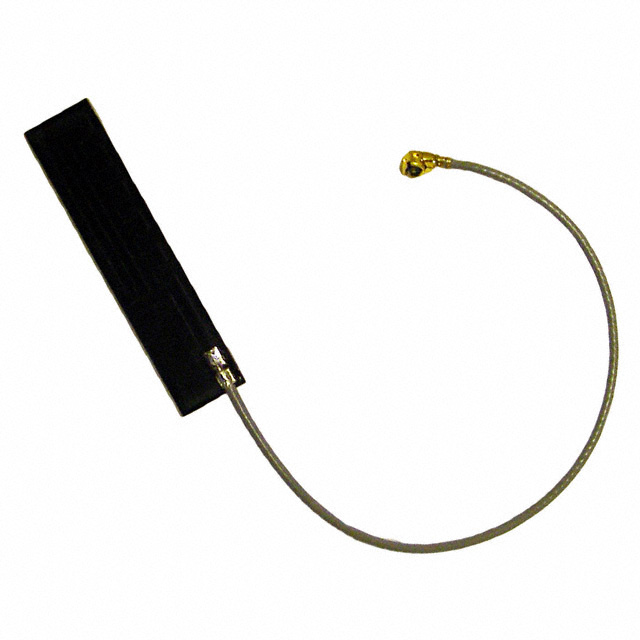

ANT-GSMMQB-UFL

Active

RF SOLUTIONS

RF ANT 850MHZ/900MHZ FLAT PATCH

Search across all available documentation for this part.

Active

RF SOLUTIONS

RF ANT 850MHZ/900MHZ FLAT PATCH

Technical Specifications

Parameters and characteristics for this part

RF ANT 850MHZ/900MHZ FLAT PATCH

Part	RF Family/Standard	Number of Bands	Features	Features	Frequency (Center/Band)	Power - Max [Max]	VSWR	Height (Max) [Max]	Height (Max)	Gain	Mounting Type	Applications	Termination	Antenna Type
RF SOLUTIONS ANT-GSMMQB-UFL	Cellular	4	Cable	200 mm	1.8 GHz, 1.9 GHz, 850 MHz, 900 MHz	10 W	2, 3	0.031 in	0.8 mm	1 dBi	Adhesive	GSM	I-PEX MHF1, U.FL (UMCC)	Flat Patch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.10

General part information

RF ANTENNA GSM Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive

Technical documentation and resources

No documents available
