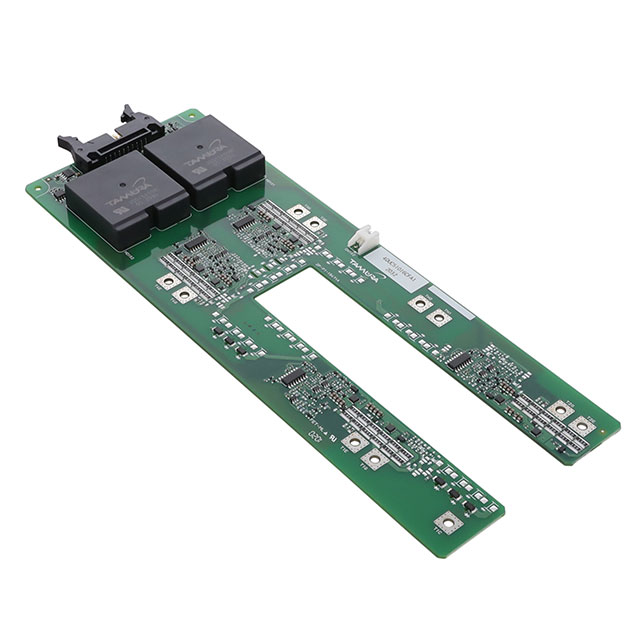

4DUC51016CFA1

Active

Tamura

IC GATE DRVR HALF-BRIDGE MODULE

Search across all available documentation for this part.

Active

Tamura

IC GATE DRVR HALF-BRIDGE MODULE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4DUC51016CFA1	4DUC51016 Series

Channel Type	Synchronous	Synchronous
Driven Configuration	Half-Bridge	Half-Bridge
Gate Type	IGBT	IGBT
High Side Voltage - Max (Bootstrap) [Max]	1200 V	1200 V
Input Type	Non-Inverting	Non-Inverting
Mounting Type	Chassis Mount	Chassis Mount
Number of Drivers	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Supplier Device Package	Module	Module
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	13 V	13 V

IC GATE DRVR HALF-BRIDGE MODULE

Part	Mounting Type	High Side Voltage - Max (Bootstrap) [Max]	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Channel Type	Driven Configuration	Gate Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Number of Drivers
Tamura 4DUD51016CFN1	Chassis Mount	1200 V	Non-Inverting	85 °C	-40 °C	Module	Synchronous	Half-Bridge	IGBT	28 V	13 V	Module	4
Tamura 4DUC51016CFA2	Chassis Mount	1200 V	Non-Inverting	85 °C	-40 °C	Module	Synchronous	Half-Bridge	IGBT	28 V	13 V	Module	4
Tamura 4DUC51016CFA1	Chassis Mount	1200 V	Non-Inverting	85 °C	-40 °C	Module	Synchronous	Half-Bridge	IGBT	28 V	13 V	Module	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 155.15

General part information

Half-Bridge Gate Driver IC Non-Inverting Module

Technical documentation and resources

No documents available
