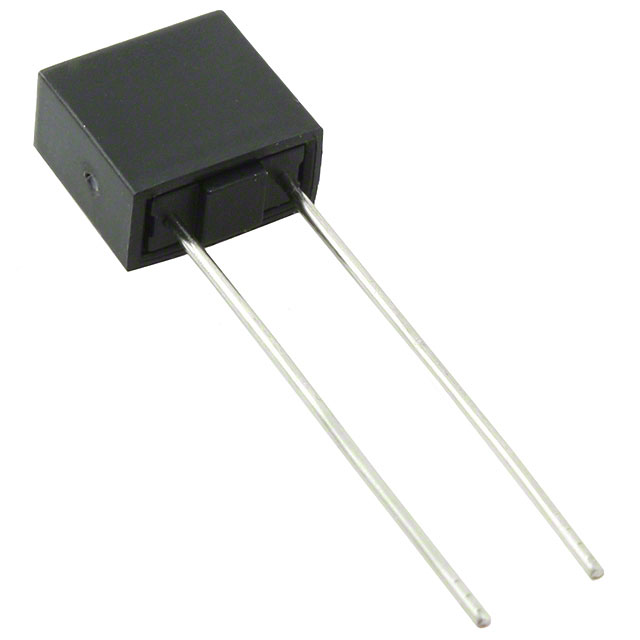

SS-5H-3.15A-AP
ActiveEaton - Electronics Division
FUSE BRD MNT 3.15A 250VAC RADIAL
SS-5H-3.15A-AP
ActiveEaton - Electronics Division
FUSE BRD MNT 3.15A 250VAC RADIAL
Description
General part information
SS-5H-3.15A-AP
3.15 A 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-5H-3.15A-AP |
|---|---|
| Approval Agency | CQC, cURus, VDE, KC, TUV, PSE |
| Breaking Capacity | 100 A |
| Current Rating | 3.15 A |
| DC Cold Resistance | 17.5 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 67 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Box |
| Response Time | Slow Blow |
| Size / Dimension Height | 0.329 in |
| Size / Dimension Length | 0.335 in |
| Size / Dimension Width | 0.169 in |
| Voltage Rating - AC | 250 V |
