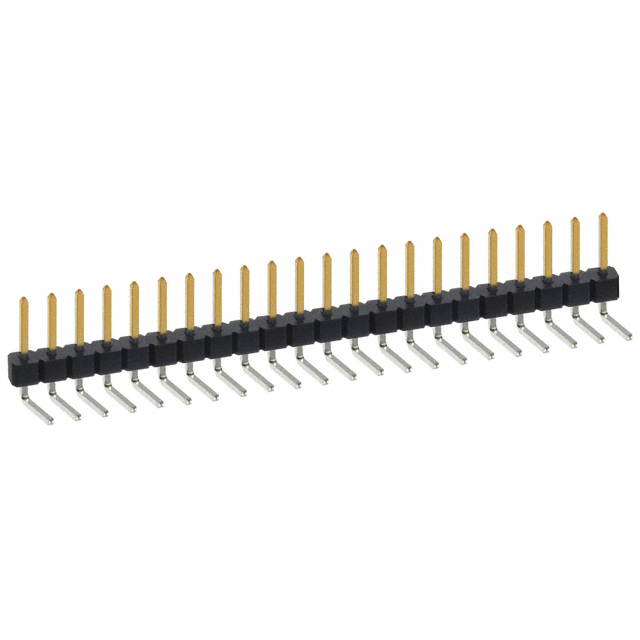

PBC22SBBN

Active

Sullins Connector Solutions

CONN HEADER R/A 22POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC22SBBN

Active

Sullins Connector Solutions

CONN HEADER R/A 22POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC22SBBN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	5.08 mm
Contact Length - Post [x]	0.2 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC22 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Number of Positions Loaded	Number of Rows	Contact Finish - Mating	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Positions	Shrouding	Current Rating (Amps)	Material Flammability Rating	Insulation Color	Fastening Type	Mounting Type	Termination	Style	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions PBC22DBBN	2.54 mm	0.1 in	5.08 mm	0.2 in	Phosphor Bronze	All	2	Gold	Tin	0.23 in	5.84 mm	0.24 in	6.1 mm	Male Pin	10 çin	0.25 çm	Square	44	Unshrouded	3 A	UL94 V-0	Black	Push-Pull	Through Hole Right Angle	Solder	Board to Board Cable	0.1 in	2.54 mm	125 °C	-65 ░C	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PBC22SBBN			5.08 mm	0.2 in	Phosphor Bronze	All	1	Gold	Tin	0.23 in	5.84 mm	0.14 in	3.56 mm	Male Pin	10 çin	0.25 çm	Square	22 positions	Unshrouded	3 A	UL94 V-0	Black	Push-Pull	Through Hole Right Angle	Solder	Board to Board Cable	0.1 in	2.54 mm	125 °C	-65 ░C	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PBC22DGAN	2.54 mm	0.1 in			Phosphor Bronze	All	2	Gold	Tin	0.318 "		0.24 in	6.1 mm	Male Pin	10 çin	0.25 çm	Square	44	Unshrouded	3 A	UL94 V-0	Black	Push-Pull	Through Hole Right Angle	Solder	Board to Board Cable	0.1 in	2.54 mm	125 °C	-65 ░C	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	8.08 mm	2.54 mm	0.1 in
Sullins Connector Solutions PBC22DAEN	2.54 mm	0.1 in			Phosphor Bronze	All	2	Gold	Tin	0.23 in	5.84 mm	0.1 in	2.54 mm	Male Pin	10 çin	0.25 çm	Square	44	Unshrouded	3 A	UL94 V-0	Black	Push-Pull	Through Hole	Solder	Board to Board Cable	0.1 in	2.54 mm	125 °C	-65 ░C	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)		13.21 mm	0.52 "	0.85 in	21.59 mm
Sullins Connector Solutions PBC22SFCN			8.13 mm	0.32 in	Phosphor Bronze	All	1	Gold	Tin	0.318 "		0.1 in	2.54 mm	Male Pin	10 çin	0.25 çm	Square	22 positions	Unshrouded	3 A	UL94 V-0	Black	Push-Pull	Through Hole	Solder	Board to Board Cable	0.1 in	2.54 mm	125 °C	-65 ░C	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	8.08 mm			0.738 "	18.75 mm
Sullins Connector Solutions PBC22DFCN	2.54 mm	0.1 in	8.13 mm	0.32 in	Phosphor Bronze	All	2	Gold	Tin	0.318 "		0.1 in	2.54 mm	Male Pin	10 çin	0.25 çm	Square	44	Unshrouded	3 A	UL94 V-0	Black	Push-Pull	Through Hole	Solder	Board to Board Cable	0.1 in	2.54 mm	125 °C	-65 ░C	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	8.08 mm			0.738 "	18.75 mm
Sullins Connector Solutions PBC22SGBN			5.08 mm	0.2 in	Phosphor Bronze	All	1	Gold	Tin	0.318 "		0.14 in	3.56 mm	Male Pin	10 çin	0.25 çm	Square	22 positions	Unshrouded	3 A	UL94 V-0	Black	Push-Pull	Through Hole Right Angle	Solder	Board to Board Cable	0.1 in	2.54 mm	125 °C	-65 ░C	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	8.08 mm
Sullins Connector Solutions PBC22SBEN					Phosphor Bronze	All	1	Gold	Tin	0.23 in	5.84 mm	0.14 in	3.56 mm	Male Pin	10 çin	0.25 çm	Square	22 positions	Unshrouded	3 A	UL94 V-0	Black	Push-Pull	Through Hole Right Angle	Solder	Board to Board Cable	0.1 in	2.54 mm	125 °C	-65 ░C	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)		12.7 mm	0.5 in
Sullins Connector Solutions PBC22DAHN	2.54 mm	0.1 in	20.83 mm	0.82 in	Phosphor Bronze	All	2	Gold	Tin	0.23 in	5.84 mm	0.1 in	2.54 mm	Male Pin	10 çin	0.25 çm	Square	44	Unshrouded	3 A	UL94 V-0	Black	Push-Pull	Through Hole	Solder	Board to Board Cable	0.1 in	2.54 mm	125 °C	-65 ░C	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)				1.15 in	29.21 mm
Sullins Connector Solutions PBC22SACN			8.13 mm	0.32 in	Phosphor Bronze	All	1	Gold	Tin	0.23 in	5.84 mm	0.1 in	2.54 mm	Male Pin	10 çin	0.25 çm	Square	22 positions	Unshrouded	3 A	UL94 V-0	Black	Push-Pull	Through Hole	Solder	Board to Board Cable	0.1 in	2.54 mm	125 °C	-65 ░C	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)					0.65 in	16.51 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.54
		10	$ 1.94
		100	$ 1.49
		500	$ 1.26
		1000	$ 1.17
		5000	$ 1.13

Description

General part information

PBC22 Series

Connector Header Through Hole, Right Angle 22 position 0.100" (2.54mm)
