Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-IFP005V2 | VN751 Series |
|---|---|---|
| - | - | |
| Current - Output (Max) | - | 2.5 A |
| Embedded | False | False |
| Fault Protection | - | Over Temperature, Current Limiting (Fixed), Over Voltage |
| Features | - | Status Flag, Auto Restart |
| Function | High Side Driver (Internal FET) | High Side Driver (Internal FET) |
| Input Type | - | Non-Inverting |
| Interface | - | On/Off |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 150 °C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | High Side |
| Output Type | - | N-Channel |
| Package / Case | - | DPAK (4 Leads + Tab), TO-252-5, TO-252AD |
| Primary Attributes | 1-Channel (Single) | 1-Channel (Single) |
| Ratio - Input:Output | - | 1:1 |
| Rds On (Typ) | - | 60 mOhm |
| Secondary Attributes | Undervoltage Protection, Overvoltage, Thermal, Short-Circuit | Undervoltage Protection, Overvoltage, Thermal, Short-Circuit |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | PPAK |
| Switch Type | - | General Purpose |
| Type | Power Management | Power Management |
| Utilized IC / Part | VN751PT | VN751PT |
| Voltage - Load | - | 5.5 V |
| Voltage - Load | - | 36 V |
| Voltage - Supply (Vcc/Vdd) | - | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.00 | |
VN751 Series

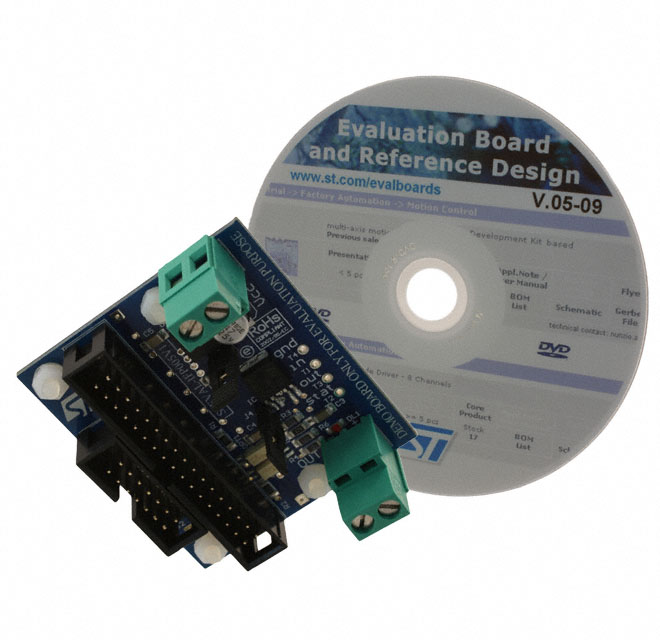

High side driver demonstration board based on the VN751PT
| Part | Type | Embedded | Secondary Attributes | Utilized IC / Part | Primary Attributes | Function | Supplied Contents | Number of Outputs | Voltage - Supply (Vcc/Vdd) | Switch Type | Rds On (Typ) | Features | Mounting Type | Output Type | Voltage - Load [Min] | Voltage - Load [Max] | Ratio - Input:Output [custom] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Fault Protection | Output Configuration | Interface | Current - Output (Max) [Max] | Supplier Device Package | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STEVAL-IFP005V2 | ||||||||||||||||||||||||||
STMicroelectronics VN751PT13TR | ||||||||||||||||||||||||||
STMicroelectronics VN751PT13TR | ||||||||||||||||||||||||||
STMicroelectronics STEVAL-IFP005V2 | Power Management | Overvoltage, Short-Circuit, Thermal, Undervoltage Protection | VN751PT | 1-Channel (Single) | High Side Driver (Internal FET) | Board(s) | ||||||||||||||||||||
STMicroelectronics VN751PT13TR | 1 | General Purpose | 60 mOhm | Auto Restart, Status Flag | Surface Mount | N-Channel | 5.5 V | 36 V | 1:1 | DPAK (4 Leads + Tab), TO-252-5, TO-252AD | 150 °C | -40 °C | Current Limiting (Fixed), Over Temperature, Over Voltage | High Side | On/Off | 2.5 A | PPAK | Non-Inverting | ||||||||
STMicroelectronics VN751PT13TR |
Description
General part information
VN751 Series
The purpose of this design is to demonstrate the features of the VN751PT high-side driver.
The application offers robustness and complies with EMC industrial standards.
It implements short-circuit/overload protection and thermal management as well, achieving best in class MTBF values.
