5151020806F
ActiveDIALIGHT

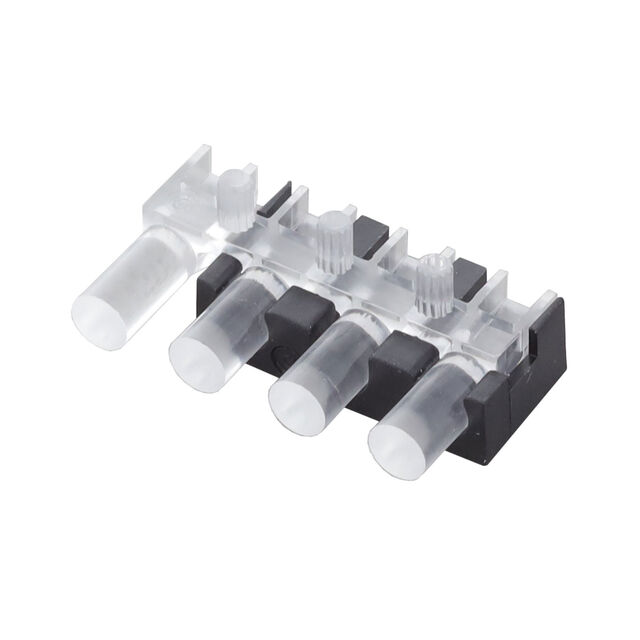

LIGHT PIPE 4 ELEMENT SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5151020806F
ActiveDIALIGHT
LIGHT PIPE 4 ELEMENT SHIELDED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5151020806F | 5151020 Series |
|---|---|---|
| Color | Clear | Clear, Diffused |
| Configuration | 4 Wide | 4 Wide, 3 Wide, 2 Wide |
| Lens Size | 3.56 mm | 1.63 - 3.56 mm |
| Mounting Type | Board Mount, Right Angle, Press Fit | Board Mount, Right Angle, Press Fit |
| Type | Rigid | Rigid |
5151020 Series
LIGHT PIPE 11.06MM 4 ELEMENT
| Part | Type | Color | Configuration | Mounting Type | Lens Size |
|---|---|---|---|---|---|
DIALIGHT 5151020807F | Rigid | Clear, Diffused | 4 Wide | Board Mount, Press Fit, Right Angle | 3.56 mm |
DIALIGHT 5151020806F | Rigid | Clear | 4 Wide | Board Mount, Press Fit, Right Angle | 3.56 mm |
DIALIGHT 5151020802F | Rigid | Clear | |||
DIALIGHT 5151020805F | Rigid | Clear | 3 Wide | Board Mount, Press Fit, Right Angle | 3.56 mm |
DIALIGHT 5151020804F | Rigid | Clear | 2 Wide | Board Mount, Press Fit, Right Angle | 1.63 mm |
DIALIGHT 5151020F | Rigid | Clear | 4 Wide | Board Mount, Press Fit, Right Angle | 3.56 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.22 | |
| 25 | $ 4.25 | |||
| 100 | $ 3.77 | |||
| 500 | $ 3.37 | |||
| 1000 | $ 3.24 | |||
| 2000 | $ 3.13 | |||
Description
General part information
5151020 Series
Light Pipe 4 Wide Clear Rigid Board Mount, Press Fit, Right Angle
Documents
Technical documentation and resources
