ATS-55400W-C1-R0 - ATS-55400W-C2-R0

ATS-55400W-C1-R0

Active
Advanced Thermal Solutions Inc.

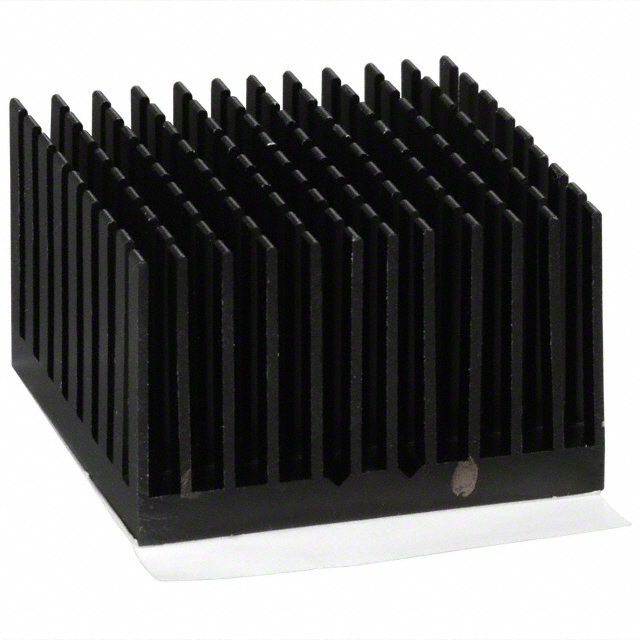

HEAT SINKS BGA HEAT SINK, CROSS-CUT, 2 SIDE THERMAL TAPE, BLACK, T412, 40X40X24.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet
ATS-55400W-C1-R0 - ATS-55400W-C2-R0

ATS-55400W-C1-R0

Active
Advanced Thermal Solutions Inc.

HEAT SINKS BGA HEAT SINK, CROSS-CUT, 2 SIDE THERMAL TAPE, BLACK, T412, 40X40X24.5MM

Deep-Dive with AI

DocumentsDatasheetDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationATS-55400W-C1-R0
Attachment MethodThermal Tape, Adhesive (Included)
Fin Height [z]24.5 mm
Fin Height [z]0.965 in
MaterialAluminum
Material FinishBlack Anodized
Package CooledBGA
ShapeSquare, Pin Fins
Thermal Resistance @ Forced Air Flow200 LFM, 2.6 °C/W
TypeTop Mount
Width [x]1.575 in
Width [x]40 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 12.49
10$ 11.09
25$ 10.57
50$ 10.20
100$ 9.84
250$ 9.38
500$ 9.04
1000$ 8.72
SagerN/A 1$ 12.98
5$ 12.11
10$ 11.72
25$ 11.01
50$ 10.38
100$ 9.69
500$ 9.44
TMEN/A 1$ 21.47
100$ 18.21

Description

General part information

ATS-55400W-C1-R0

Heat Sink BGA Aluminum Top Mount
