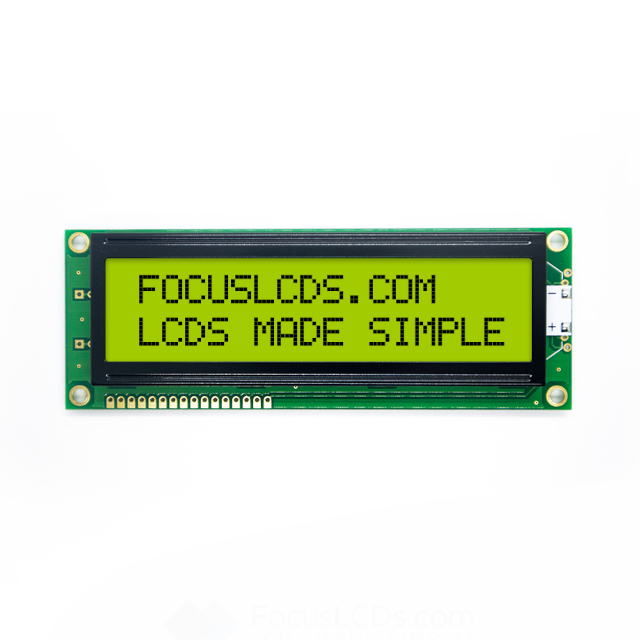

C162D-YTY-LW65
ActiveFocus LCDs
16X2 STN YELLOW/GREEN CHARACTER
C162D-YTY-LW65
ActiveFocus LCDs
16X2 STN YELLOW/GREEN CHARACTER
Description
General part information
C162D-YTY-LW65
Character Display Module Transflective 5 x 7 Dots STN - Super-Twisted Nematic LED - Yellow Parallel 122.00mm x 44.00mm x 13.50mm
Technical Specifications
Parameters and characteristics for this part
| Specification | C162D-YTY-LW65 |
|---|---|
| Background Color | Yellow, Green |
| Backlight Color | Yellow |
| Backlight Type | LED |
| Character Height | 9.55 mm |
| Character Height (Dots) | 7 Dots |
| Character Width | 5.2 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | ST7066U |
| Display Columns | 16 |
| Display Mode | Transflective |
| Display Rows | 2 |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size Height | 1.15 mm |
| Dot Size Width | 1 mm |
| Interface | Parallel |
| Number of Characters | 32 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 13.5 mm |
| Outline Length | 122 mm |
| Outline Width | 44 mm |
| Text Color | Black |
| Viewing Area Length | 99 mm |
| Viewing Area Width | 24 mm |
| Voltage - Supply | 5 VDC |
