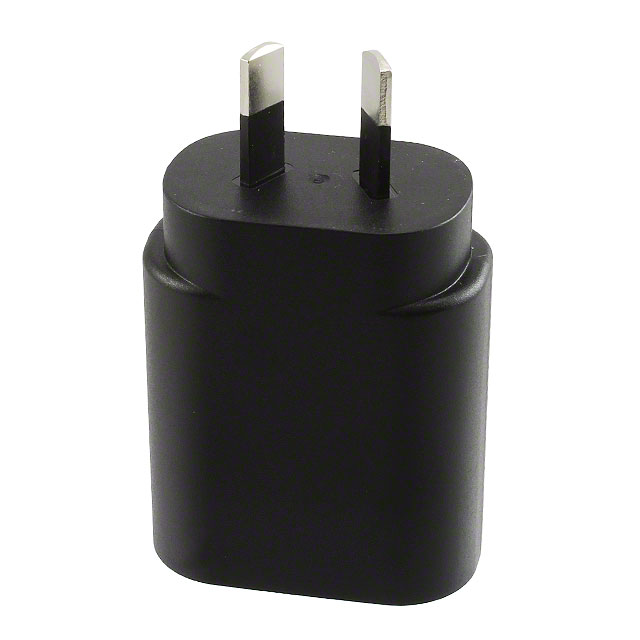

PSA05S-050QA-H
ObsoletePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 5W
PSA05S-050QA-H
ObsoletePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 5W
Description
General part information
PSA05S-050QA-H
5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PSA05S-050QA-H |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 1 A |
| Efficiency | Level V |
| Form | Wall Mount (Class II) |
| Input Connector | AS 3112 |
| Input Type | Fixed Blade |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | USB A Receptacle |
| Power (Watts) | 5 W |
| Region Utilized | Australia |
| Size / Dimension Height | 2.09 in |
| Size / Dimension Length | 0.98 in |
| Size / Dimension Width | 1.69 in |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 5 VDC |
| Weight | 0.176 lb |
