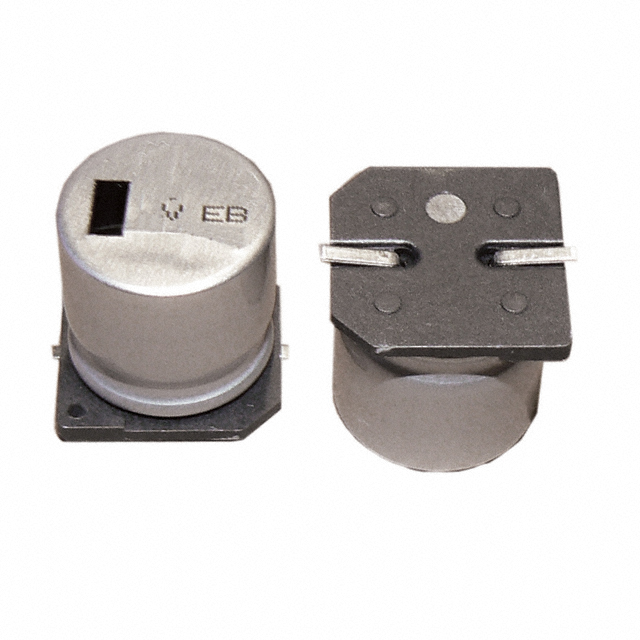

AEB336M2GS44T-F
ObsoleteCornell Dubilier Knowles
CAP ALUM 33UF 20% 400V SMD
AEB336M2GS44T-F
ObsoleteCornell Dubilier Knowles
CAP ALUM 33UF 20% 400V SMD
Description
General part information
AEB336M2GS44T-F
33 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | AEB336M2GS44T-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 33 µF |
| Height - Seated (Max) | 0.846 in |
| Impedance | 1.2 Ohm |
| Lifetime | 5000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 300 mA, 600 mA |
| Size / Dimension Diameter | 0.709 in |
| Surface Mount Land Length | 0.748 in |
| Surface Mount Land Width | 0.748 in |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
