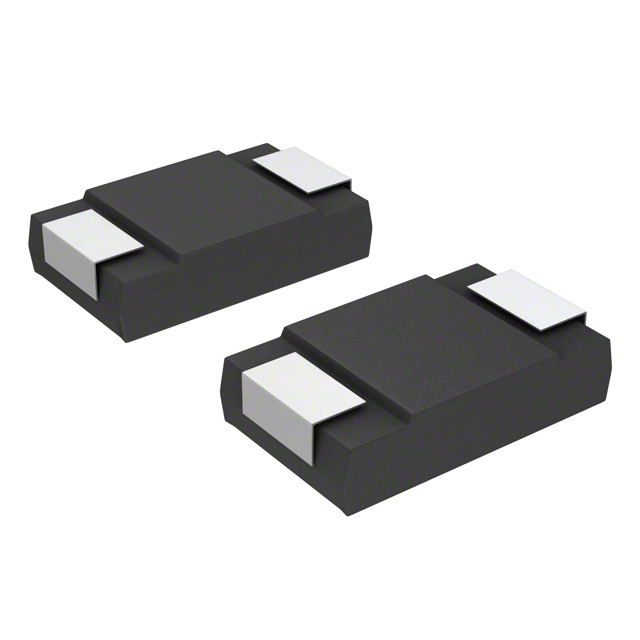

Specification	ESRD8R2M16B

Applications	Bypass, Decoupling
Capacitance	8.2 µF
ESR (Equivalent Series Resistance)	45 mOhm
Height - Seated (Max)	0.071 in
Lifetime	1000 Hrs
Mounting Type	Surface Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	2917 (7343 Metric)
Ripple Current	1.3 A
Size / Dimension Length	0.287 in
Size / Dimension Width	0.169 in
Surface Mount Land Length	0.287 in
Surface Mount Land Width	0.169 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V
