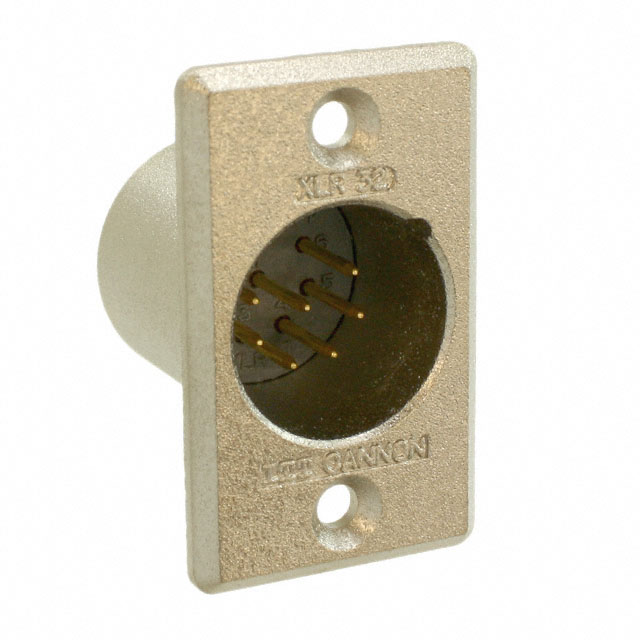

XLR732

Active

ITT Cannon, LLC

CONN RCPT MALE XLR 7P SOLDER CUP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT MALE XLR 7P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XLR732	XLR73 Series

Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Silver, Gold
Contact Material	-	Copper Alloy
Fastening Type	Latch Lock	Latch Lock
Insert Material	-	Chloroprene, Nylon, Polyamide (PA)
Mounting Feature	Flange	Flange
Number of Positions	7	7
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum	Aluminum Alloy, Aluminum
Shell Size - Insert	XLR	XLR
Shielding	-	Unshielded
Voltage Rating	133 V	133 VAC

CIRCULAR

Part	Connector Type	Shell Finish	Mounting Feature	Voltage Rating	Orientation	Fastening Type	Shell Material	Contact Material	Contact Finish - Mating	Shielding	Primary Material	Insert Material	Color	Shell Size - Insert	Number of Positions
ITT Cannon, LLC XLR731F77	Receptacle, Female Sockets	Nickel	Flange	133 VAC	Keyed	Latch Lock	Aluminum Alloy	Copper Alloy	Silver	Unshielded	Metal	Chloroprene	Silver	XLR	7
ITT Cannon, LLC XLR732	Male Pins, Receptacle	Nickel	Flange	133 V	Keyed	Latch Lock	Aluminum		Gold		Metal		Silver	XLR	7
ITT Cannon, LLC XLR732F77	Male Pins, Receptacle	Nickel	Flange	133 VAC	Keyed	Latch Lock	Aluminum Alloy	Copper Alloy	Silver	Unshielded	Metal	Nylon, Polyamide (PA)	Silver	XLR	7
ITT Cannon, LLC XLR731	Receptacle, Female Sockets	Nickel	Flange	133 VAC	Keyed	Latch Lock	Aluminum Alloy	Copper Alloy	Silver	Unshielded	Metal	Chloroprene	Silver	XLR	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 15.68

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
