GSL6TVS15A
ActiveGood-Ark Semiconductor
TVS, UNI-DIR, 600W, 15V, ESGB (S
GSL6TVS15A
ActiveGood-Ark Semiconductor
TVS, UNI-DIR, 600W, 15V, ESGB (S
Description
General part information
GSL6TVS15A

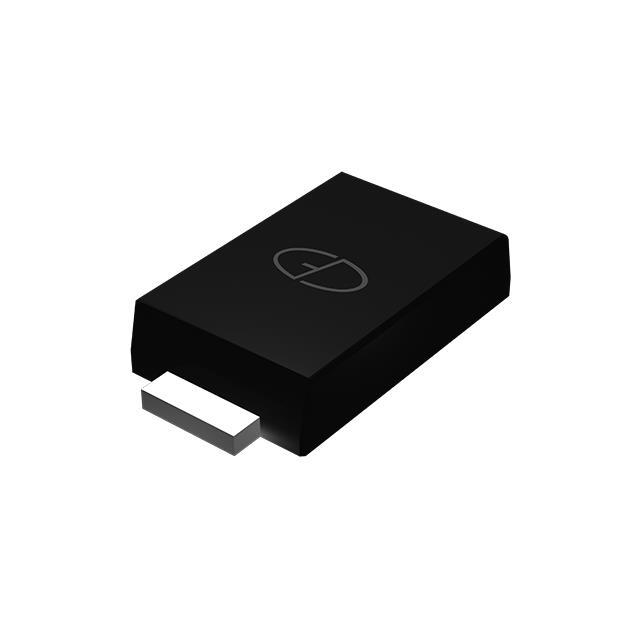

24.4V Clamp 24.6A Ipp Tvs Diode Surface Mount eSGB (SMAF)
Technical Specifications
Parameters and characteristics for this part
| Specification | GSL6TVS15A |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse | 24.6 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | DO-221AC, SMA Flat Leads |
| Package Name | eSGB (SMAF) |
| Power - Peak Pulse | 600 W |
| Power Line Protection | No |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 16.7 V |
| Voltage - Clamping (Max) | 24.4 V |
| Voltage - Reverse Standoff (Typ) | 15 V |
