1-1337476-0

Active

TE Connectivity AMP Connectors

CONN SMB JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMB JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337476-0

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Lockwasher, 1 Nut, 1 Connector, 1 Clamp, 1 Washer
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	250 VDC

CONN SMB JACK STR 50 OHM SOLDER

Part	Mating Cycles	Contact Termination	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Body Material	Cable Group	Insertion Loss	Voltage Rating	Connector Style	Center Contact Plating	Frequency - Max [Max]	Housing Color	Mounting Feature	Connector Type	Dielectric Material	Fastening Type	Number of Ports	Impedance	Center Contact Material	Includes
TE Connectivity AMP Connectors 1-1337476-0	500	Solder	Clamp	-65 ░C	165 °C	Gold	Brass	188A, 316, RG-174A	0.3 dB	250 VDC	SMB	Gold	4 GHz	Gold	Bulkhead - Front Side Nut	Jack, Male Pin	Polytetrafluoroethylene (PTFE)	Snap-On	1	50 Ohms	Brass	1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut, 1 Washer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

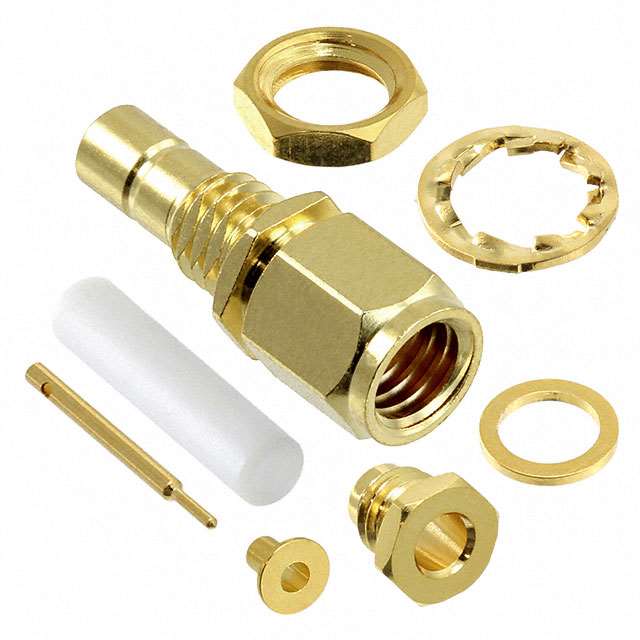

SMB Connector Jack, Male Pin 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
