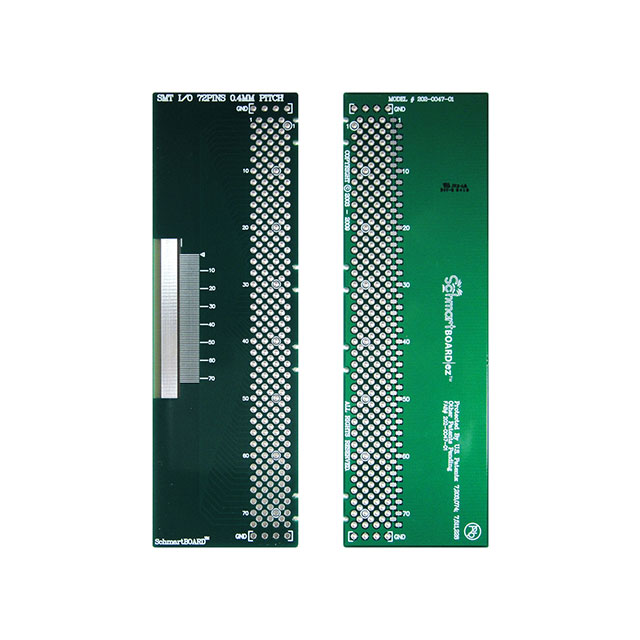

202-0047-01
ActiveSchmartboard, Inc.
BREADBOARD GENERAL PURPOSE NPTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 202-0047-01 |
|---|---|
| Circuit Pattern | Custom |
| Hole Diameter [diameter] | 0.97 mm |
| Hole Diameter [diameter] | 0.038 in |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
| Plating | Non-Plated Through Hole (NPTH) |
| Proto Board Type | Breadboard, General Purpose |
| Size / Dimension [x] | 101.4 mm |
| Size / Dimension [x] | 3.99 in |
| Size / Dimension [y] | 32.9 mm |
| Size / Dimension [y] | 1.29 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.00 | |
Description
General part information
202-0047 Series
Breadboard, General Purpose Non-Plated Through Hole (NPTH) Custom 0.016" (0.4mm) Grid
