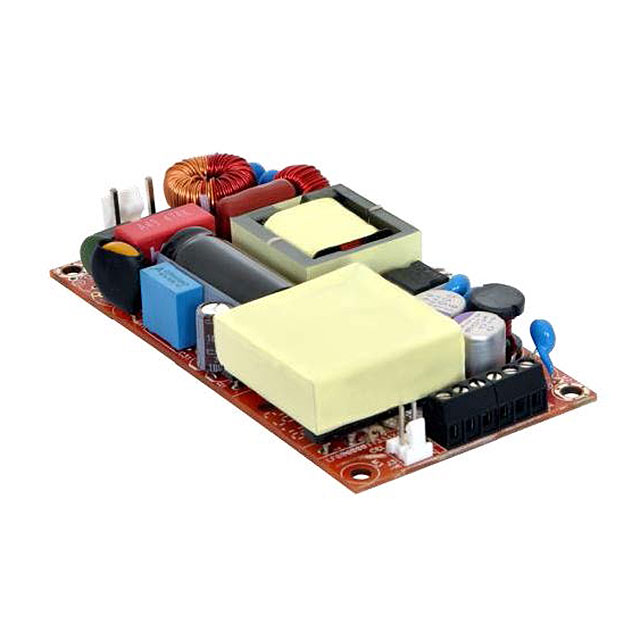

ABC180-1048L

Active

Bel Power Solutions

AC/DC CONVERTER 48V 120/180W

Deep-Dive with AI

Search across all available documentation for this part.

ABC180-1048L

Active

Bel Power Solutions

AC/DC CONVERTER 48V 120/180W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 114.07
		5	$ 110.56

Description

General part information

ABC180 Series

Open Frame AC DC Converters 1 Output 48V 80 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABC180-1048L	ABC180 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	2.34 A	2.07 - 4.68 A
Efficiency	92 %	88 - 92 %
Features	DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output	DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	120 W, 180 W	120 - 180 W
Size / Dimension [x]	4 in	4 in
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [y]	2 in	2 in
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	19.1 mm	19.1 mm
Size / Dimension [z]	0.75 in	0.75 in
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	80 VAC	80 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	48 V	12 - 48 V

ABC180 Series

AC/DC CONVERTER 58V 120W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Voltage - Isolation	Efficiency	Mounting Type	Number of Outputs	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Features	Power (Watts)	Applications	Current - Output 1	Voltage - Output 1
Bel Power Solutions ABC180-1T58L	264 VAC	80 VAC	CE	3000 V	92 %	Chassis Mount	1	Open Frame	2 in	4 in	101.6 mm	50.8 mm	19.1 mm	0.75 in	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	120 W, 180 W	ITE (Commercial)	2.07 A
Bel Power Solutions ABC180-1T15L	264 VAC	80 VAC	CE	3000 V	88 %	Chassis Mount	1	Open Frame	2 in	4 in	101.6 mm	50.8 mm	19.1 mm	0.75 in	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	120 W, 180 W	ITE (Commercial)		15 V
Bel Power Solutions ABC180-1024L	264 VAC	80 VAC	CE	3000 V	90 %	Chassis Mount	1	Open Frame	2 in	4 in	101.6 mm	50.8 mm	19.1 mm	0.75 in	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	120 W, 180 W	ITE (Commercial)	4.68 A	24 V
Bel Power Solutions ABC180-1030L	264 VAC	80 VAC	CE	3000 V	90 %	Chassis Mount	1	Open Frame	2 in	4 in	101.6 mm	50.8 mm	19.1 mm	0.75 in	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	120 W, 180 W	ITE (Commercial)	3.75 A	30 V
Bel Power Solutions ABC180-1015L	264 VAC	80 VAC	CE	3000 V	88 %	Chassis Mount	1	Open Frame	2 in	4 in	101.6 mm	50.8 mm	19.1 mm	0.75 in	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	120 W, 180 W	ITE (Commercial)		15 V
Bel Power Solutions ABC180-1048L	264 VAC	80 VAC	CE	3000 V	92 %	Chassis Mount	1	Open Frame	2 in	4 in	101.6 mm	50.8 mm	19.1 mm	0.75 in	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	120 W, 180 W	ITE (Commercial)	2.34 A	48 V
Bel Power Solutions ABC180-1012L	264 VAC	80 VAC	CE	3000 V	88 %	Chassis Mount	1	Open Frame	2 in	4 in	101.6 mm	50.8 mm	19.1 mm	0.75 in	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	120 W, 180 W	ITE (Commercial)		12 V
