76-FIRD12L
ActiveNTE Electronics, Inc
PVC INS RECEPT DISC 12-10 50 BAG
76-FIRD12L
ActiveNTE Electronics, Inc
PVC INS RECEPT DISC 12-10 50 BAG
Description
General part information
76-FIRD12L

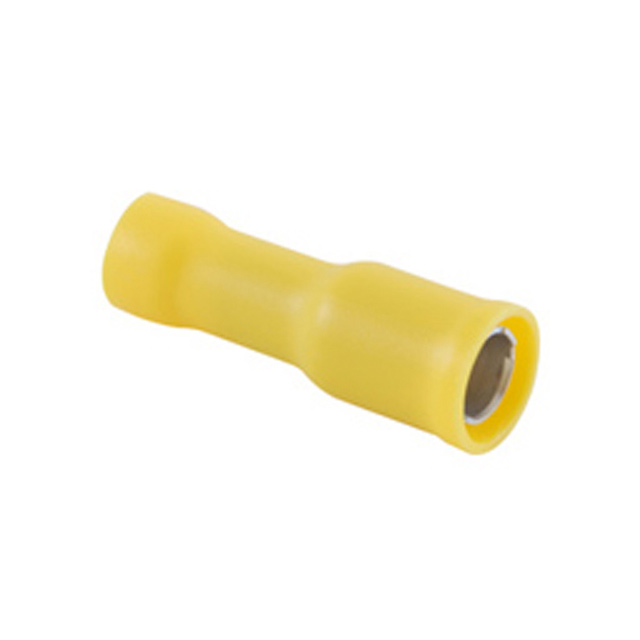

Terminal Connector Female, Receptacle (Socket) 10-12 AWG Crimp Electro-Tin
Technical Specifications
Parameters and characteristics for this part
| Specification | 76-FIRD12L |
|---|---|
| Color | Yellow |
| Contact Finish | Electro-Tin |
| Contact Material | Brass |
| Diameter - Barrel | 0.217 in |
| Insulation | Fully Insulated |
| Length - Barrel | 0.492 in |
| Length - Overall | 1.003 in |
| Material - Insulation | PVC, Poly-Vinyl Chloride |
| Terminal Type | Receptacle (Socket), Female |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
