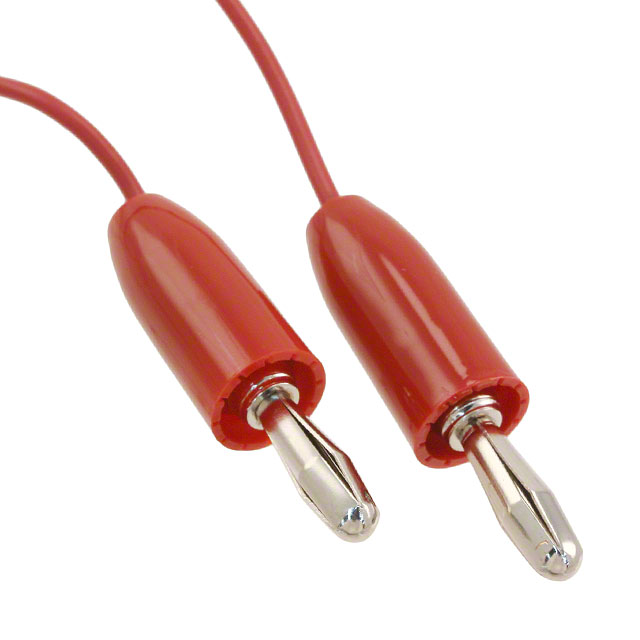

9105-18 RED
ActiveE-Z-Hook
TEST LEAD BANANA TO BANANA 18"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9105-18 RED
ActiveE-Z-Hook
TEST LEAD BANANA TO BANANA 18"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 9105-18 RED | 9105-18 Series |
|---|---|---|
| 1st Connector | Banana Plug, Single | Banana Plug, Single |
| 2nd Connector | Banana Plug, Single | Banana Plug, Single |
| Cable Length | 457.2 mm | 457.2 mm |
| Cable Length | 18 in | 18 in |
| Configuration | Banana to Banana | Banana to Banana |
| Contents | Red | 1 Lead, Black, Red |
| Contents [custom] | 1 | 1 |
| Current Rating (Amps) | 2.5 A | 2.5 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Stacking Method | Non Stackable | Non Stackable |
| Type | Patch Cord | Patch Cord |
| Voltage - Rated | 1 kV | 1 kV |
| Voltage - Rated | 1000 V | 1000 V |
| Wire Gauge | 22 AWG | 22 AWG |
9105-18 Series
TEST LEAD BANANA TO BANANA 18"
| Part | Cable Length | Cable Length | Wire Gauge | Configuration | Voltage - Rated | Voltage - Rated | Material - Insulation | Current Rating (Amps) | Type | 2nd Connector | 1st Connector | Contents | Stacking Method | Contents [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Z-Hook 9105-18 BLK | 457.2 mm | 18 in | 22 AWG | Banana to Banana | 1 kV | 1000 V | Poly-Vinyl Chloride (PVC) | 2.5 A | Patch Cord | Banana Plug, Single | Banana Plug, Single | 1 Lead, Black | Non Stackable | |
E-Z-Hook 9105-18 RED | 457.2 mm | 18 in | 22 AWG | Banana to Banana | 1 kV | 1000 V | Poly-Vinyl Chloride (PVC) | 2.5 A | Patch Cord | Banana Plug, Single | Banana Plug, Single | Red | Non Stackable | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.88 | |
| 5 | $ 6.57 | |||
| 10 | $ 6.44 | |||
| 25 | $ 6.27 | |||
| 50 | $ 6.14 | |||
| 100 | $ 6.02 | |||
| 250 | $ 5.87 | |||
| 500 | $ 5.75 | |||
| 1000 | $ 5.64 | |||
Description
General part information
9105-18 Series
18.0" (457.20mm) Banana Plug, Single To Banana Plug, Single Patch Cord 1000V (1kV)
