11826-BAA

Active

Amphenol ICC

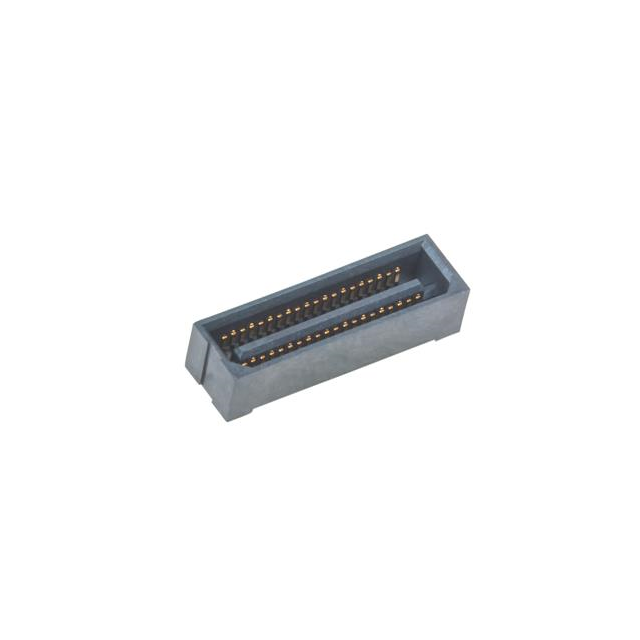

LYNX, 5MM, 4X10 PLUG

Search across all available documentation for this part.

Active

Amphenol ICC

LYNX, 5MM, 4X10 PLUG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LYNX, 7MM, 4X10 PLUG

Part	Mated Stacking Heights	Number of Positions	Pitch [x]	Pitch [x]	Features	Connector Type	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Height Above Board [z]	Height Above Board [z]
Amphenol ICC 11826-DAA	7 mm	40	0.6 mm	0.024 in	Board Guide	Outer Shroud Contacts, Plug	6.7 mm	0.264 "	Gold	Surface Mount
Amphenol ICC 11826-BAA	5 mm	40	0.6 mm	0.024 in	Board Guide	Outer Shroud Contacts, Plug	4.7 mm	0.185 in	Gold	Surface Mount
Amphenol ICC 11826-GDA	10 mm	160	0.6 mm	0.024 in	Board Guide	Outer Shroud Contacts, Plug			Gold	Surface Mount	0.382 in	9.7 mm
Amphenol ICC 11826-AFA	4 mm	240	0.6 mm	0.024 in	Board Guide, Pick and Place	Outer Shroud Contacts, Plug	3.7 mm	0.146 in	Gold	Surface Mount
Amphenol ICC 11826-CCA	6 mm	120	0.6 mm	0.024 in	Board Guide	Outer Shroud Contacts, Plug	5.7 mm	0.224 in	Gold	Surface Mount
Amphenol ICC 11826-BBA	5 mm	80	0.6 mm	0.024 in	Board Guide	Outer Shroud Contacts, Plug	4.7 mm	0.185 in	Gold	Surface Mount
Amphenol ICC 11826-CDA	6 mm	160	0.6 mm	0.024 in	Board Guide	Outer Shroud Contacts, Plug	5.7 mm	0.224 in	Gold	Surface Mount
Amphenol ICC 11826-GGA	10 mm	280	0.6 mm	0.024 in	Board Guide, Pick and Place	Outer Shroud Contacts, Plug			Gold	Surface Mount	0.382 in	9.7 mm
Amphenol ICC 11826-ABA	4 mm	80	0.6 mm	0.024 in	Board Guide	Outer Shroud Contacts, Plug	3.7 mm	0.146 in	Gold	Surface Mount
