A2-12R-C

Active

Panduit Corp

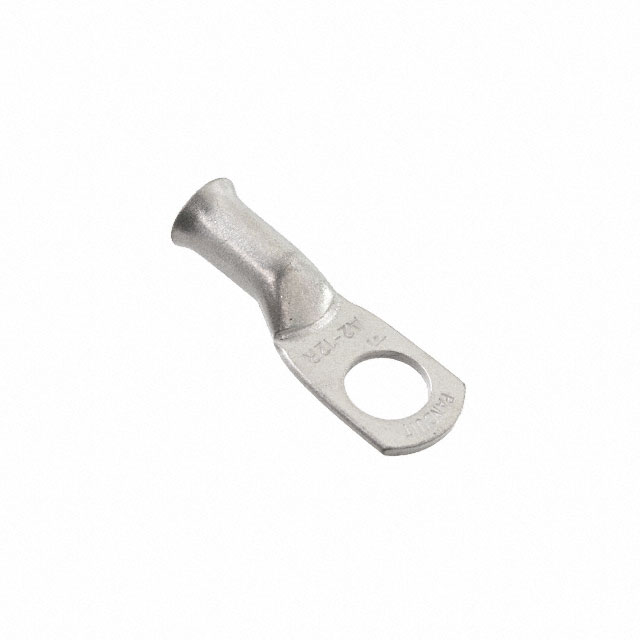

LUG TERMINAL, PAN LUG SERIES, CRIMP, 2 AWG, COMPRESSION LUG, M12

Search across all available documentation for this part.

Active

Panduit Corp

LUG TERMINAL, PAN LUG SERIES, CRIMP, 2 AWG, COMPRESSION LUG, M12

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A2-12R-C	A2 Series

Contact Finish	Electro-Tin	Electro-Tin
Contact Material	Copper	Copper
Insulation	Non-Insulated	Non-Insulated
Length - Overall [x]	2.16 in	1.84 - 2.16 in
Length - Overall [x]	54.86 mm	46.74 - 54.86 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	1/2 Stud	1/2 Stud
Stud/Tab Size	-	0.25 Stud
Terminal Type	Circular Tubular (Battery Lugs)	Circular Tubular (Battery Lugs)
Termination	Crimp	Crimp
Thickness	2.03 mm	2.03 - 2.54 mm
Thickness	0.08 "	0.08 - 0.1 "
Width - Outer Edges [y]	0.75 in	0.6 - 0.75 in
Width - Outer Edges [y]	19.05 mm	15.24 - 19.05 mm
Wire Gauge	2 AWG	2 AWG

Barrier Terminal Blocks Single Row 7 Pole MAGNUM 2000 SERIES

Part	Termination	Contact Material	Stud/Tab Size	Insulation	Wire Gauge	Thickness	Thickness	Terminal Type	Mounting Type	Length - Overall [x]	Length - Overall [x]	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size
Panduit Corp A2-12R-C	Crimp	Copper	1/2 Stud	Non-Insulated	2 AWG	2.03 mm	0.08 "	Circular Tubular (Battery Lugs)	Free Hanging (In-Line)	2.16 in	54.86 mm	Electro-Tin	0.75 in	19.05 mm
Panduit Corp A2-14R-C	Crimp	Copper		Non-Insulated	2 AWG	2.54 mm	0.1 in	Circular Tubular (Battery Lugs)	Free Hanging (In-Line)	1.84 in	46.74 mm	Electro-Tin	0.6 in	15.24 mm	0.25 Stud
