Description
General part information

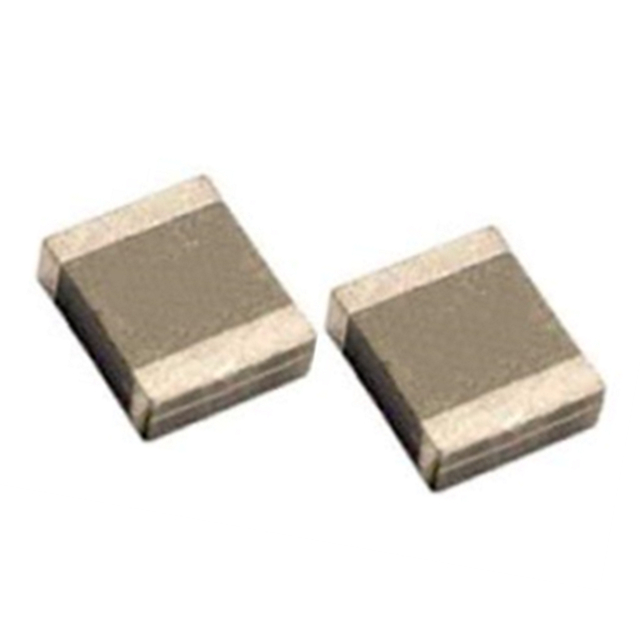

CS8M000000S001
8 MHz Ceramic Resonator ±0.3% 60 Ohms -25°C ~ 85°C Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CS8M000000S001 |
|---|---|
| Frequency | 8 MHz |
| Frequency Stability | 0.3 % |
| Frequency Tolerance | 0.5 % |
| Height | 0.075 in |
| Impedance | 60 Ohm |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | No Lead, 2-SMD |
| Size / Dimension Length | 0.185 in |
| Size / Dimension Width | 0.161 in |
| Type | Ceramic |
