Description
General part information

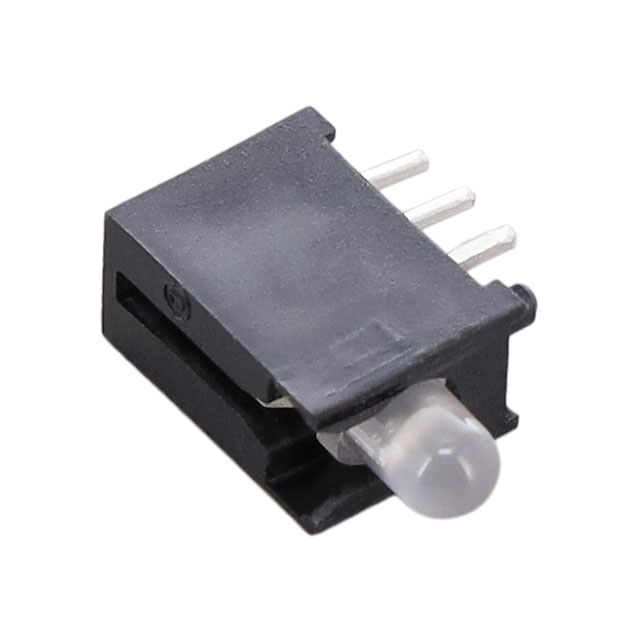

5513508801NF
LED Circuit Board Indicator LED Circuit Board Indicator Single Green-Red Diffused 2.1V Green, 2V Red 20mA Green, 20mA Red Round with Domed Top 3.00mm Dia Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 5513508801NF |
|---|---|
| Color | Red, Green, Green-Red |
| Configuration | Single |
| Current (Green) | 20 mA |
| Current (Red) | 20 mA |
| Current Colors | Red, Green |
| Lens Diameter | 3 mm |
| Lens Style | Round, Domed Top |
| Lens Type | Diffused |
| Millicandela Rating (Green) | 19 mcd |
| Millicandela Rating (Red) | 19 mcd |
| Millicandela Rating Colors | Red, Green |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 75 ° |
| Voltage Rating - Color | Green, Red |
| Voltage Rating (Green) | 2.1 V |
| Voltage Rating (Red) | 2 V |
| Wavelength - Peak (1) | 573 nm |
| Wavelength - Peak (2) | 625 nm |
