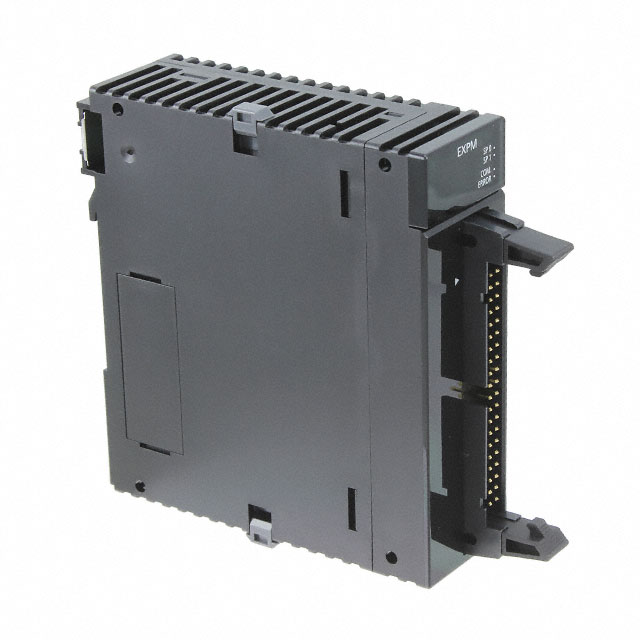

AFP7EXPM

Active

Panasonic Industrial Automation Sales

CONTROL MODULE

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CONTROL MODULE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AFP7EXPM	AFP7EX Series

Control Side Connection	-	Rectangular Connector
For Use With/Related Products	FP7 Series	FP7 Series, Panasonic FP7 Series
Length	-	1 - 3 m
Length	-	3.28 - 9.84 ft
Length	-	10 m
Length	-	32.81 ft
Mounting Type	DIN Rail	DIN Rail
Number of Positions	-	40
Process Side Connection	-	Rectangular Connector
Specifications	-	Extension
Termination Style	Rectangular Connector	Rectangular Connector
Type	Control Module	Interface Module, Control Module
Weight	0.265 lb	0.265 - 0.441 lb
Weight	120.2 g	120.2 - 200.03 g

INTERFACE MODULE

Part	Weight	Weight	For Use With/Related Products	Termination Style	Mounting Type	Type	Process Side Connection	Control Side Connection	Length [x]	Length [x]	Number of Positions	Specifications	Length	Length
Panasonic Industrial Automation Sales AFP7EXPS	200.03 g	0.441 lb	FP7 Series	Rectangular Connector	DIN Rail	Interface Module
Panasonic Industrial Automation Sales AFP7EXPC01			Panasonic FP7 Series				Rectangular Connector	Rectangular Connector	1 m	3.28 ft	40	Extension
Panasonic Industrial Automation Sales AFP7EXPM	120.2 g	0.265 lb	FP7 Series	Rectangular Connector	DIN Rail	Control Module
Panasonic Industrial Automation Sales AFP7EXPC10			Panasonic FP7 Series				Rectangular Connector	Rectangular Connector			40	Extension	10 m	32.81 ft
Panasonic Industrial Automation Sales AFP7EXPC03			Panasonic FP7 Series				Rectangular Connector	Rectangular Connector	3 m	9.84 ft	40	Extension

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Control Module DIN Rail
