MINI-UHF-16
ObsoleteCinch Connectivity Solutions AIM-Cambridge
CONN MINI UHF PLUG STR CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MINI-UHF-16
ObsoleteCinch Connectivity Solutions AIM-Cambridge
CONN MINI UHF PLUG STR CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MINI-UHF-16 |
|---|---|
| Body Finish | Nickel |
| Cable Group | RG-450 Proflex |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | Mini, UHF |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder, Crimp |
| Dielectric Material | Polymethylpentene (PMP) |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Silver |
| Impedance | Non-Constant |

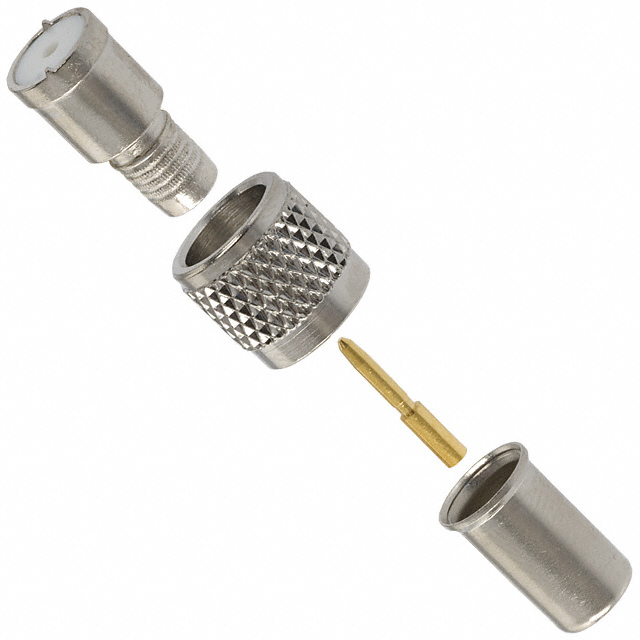

| Includes | 1 Contact, 1 Connector, 1 Sleeve, 1 Coupling Nut |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MINI-UHF-16
UHF, Mini Connector Plug, Male Pin Non-Constant Free Hanging (In-Line) Crimp or Solder
