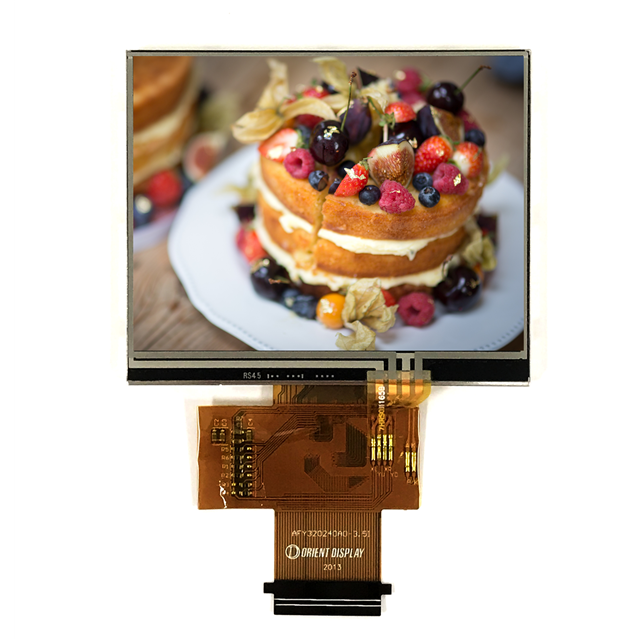

AFY320240A0-3.5INTH-R
ActiveOrient Display
GRAPHIC DISPLAY TFT RGB 3.5"
AFY320240A0-3.5INTH-R
ActiveOrient Display
GRAPHIC DISPLAY TFT RGB 3.5"
Description
General part information
AFY320240A0-3.5INTH-R
Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) 24-Bit (RGB), SPI 3.5" (88.90mm) 320 x 240
Technical Specifications
Parameters and characteristics for this part
| Specification | AFY320240A0-3.5INTH-R |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | ST7272A |
| Diagonal Screen Size | 3.5 in |
| Display Mode | Transmissive |
| Display Type | IPS (In-Plane Switching), TFT - Color |
| Dot Pixels (Horizontal) | 320 pixels |
| Dot Pixels (Vertical) | 240 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | SPI |
| Interface Data Width | 24 Bit |
| Touchscreen | Resistive |
| Viewing Area Height | 54.76 mm |
| Viewing Area Width | 72.28 mm |
