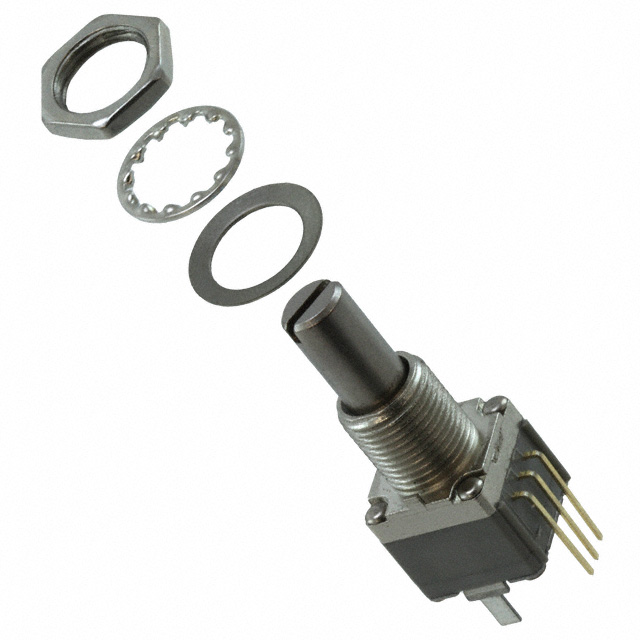

P260T-D1BS3CB100K

Active

TT Electronics/BI

POT 100K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P260T-D1BS3CB100K

Active

TT Electronics/BI

POT 100K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P260T-D1BS3CB100K	P260T Series

Actuator Diameter	6.35 mm	6.35 mm
Actuator Diameter	-	3.2 mm
Actuator Diameter [diameter]	0.25 in	0.126 - 0.25 in
Actuator Length	-	0.472 in
Actuator Length	-	12 mm
Actuator Length [z]	20 mm	20 mm
Actuator Length [z]	0.787 in	0.787 in
Actuator Type	Slotted	Slotted, Flatted
Adjustment Type	Top Adjustment	Top Adjustment
Built in Switch	False	False
Bushing Thread	3/8-32	3/8-32, 1/4-32
Features	Sealed	Sealed
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.5 W	0.5 - 250 W
Power (Watts)	0.5 W	0.25 - 0.5 W
Resistance (Ohms)	100 kOhms	100 kOhms
Resistance (Ohms)	-	10k, 1M, 4.7k
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	295 °	295 °
Size - Body	-	12.7 mm
Size - Body	-	12.7 mm
Size - Body	-	0.5 "
Size - Body [x]	12.7 mm	12.7 mm
Size - Body [x]	0.5 in	0.5 in
Size - Body [y]	12.7 mm	12.7 mm
Size - Body [y]	0.5 "	0.5 "
Taper	Linear	Linear, Logarithmic
Termination Style	PC Pins	PC Pins
Tolerance	10 %	10 %

P260T Series

POT 10K OHM 1/2W PLASTIC LINEAR

Part	Actuator Type	Actuator Diameter	Actuator Diameter [diameter]	Taper	Number of Gangs	Resistive Material	Rotation	Bushing Thread	Number of Turns	Adjustment Type	Power (Watts)	Power (Watts)	Size - Body [y]	Size - Body [x]	Size - Body [z]	Size - Body [z]	Size - Body [y]	Size - Body [x]	Tolerance	Actuator Length [z]	Actuator Length [z]	Resistance (Ohms)	Termination Style	Size - Body [y]	Features	Actuator Diameter [diameter]	Actuator Length [x]	Actuator Length [x]	Resistance (Ohms)
TT Electronics/BI P260T-S1BS3CB10K	Slotted	6.35 mm	0.25 in	Linear	1	Conductive Plastic	295 °	3/8-32	1	Top Adjustment	0.5 W	0.5 W	12.7 mm	12.7 mm	12.7 mm	0.5 "	0.5 "	0.5 in	10 %	20 mm	0.787 in	10k	PC Pins
TT Electronics/BI P260T-S1BF3DB1MEG	Flatted	6.35 mm	0.25 in	Linear	1	Conductive Plastic	295 °	3/8-32	1	Top Adjustment	0.5 W	0.5 W		12.7 mm			0.5 "	0.5 in	10 %	20 mm	0.787 in	1M	PC Pins	12.7 mm	Sealed
TT Electronics/BI P260T-D1AF4CB4K7	Flatted		0.126 in	Linear	1	Conductive Plastic	295 °	1/4-32	1	Top Adjustment	0.5 W	0.5 W		12.7 mm			0.5 "	0.5 in	10 %			4.7k	PC Pins	12.7 mm	Sealed	3.2 mm
TT Electronics/BI P260T-S1BF3CB1MEG	Flatted	6.35 mm	0.25 in	Linear	1	Conductive Plastic	295 °	3/8-32	1	Top Adjustment	0.5 W	0.5 W		12.7 mm			0.5 "	0.5 in	10 %	20 mm	0.787 in	1M	PC Pins	12.7 mm	Sealed
TT Electronics/BI P260T-S1AF1DB100K	Flatted		0.126 in	Linear	1	Conductive Plastic	295 °	1/4-32	1	Top Adjustment	0.5 W	0.5 W		12.7 mm			0.5 "	0.5 in	10 %				PC Pins	12.7 mm	Sealed	3.2 mm	0.472 in	12 mm	100 kOhms
TT Electronics/BI P260T-S1BF3DA100K	Flatted	6.35 mm	0.25 in	Logarithmic	1	Conductive Plastic	295 °	3/8-32	1	Top Adjustment	250 mW	0.25 W		12.7 mm			0.5 "	0.5 in	10 %	20 mm	0.787 in		PC Pins	12.7 mm	Sealed				100 kOhms
TT Electronics/BI P260T-S1BS3CB1MEG	Slotted	6.35 mm	0.25 in	Linear	1	Conductive Plastic	295 °	3/8-32	1	Top Adjustment	0.5 W	0.5 W		12.7 mm			0.5 "	0.5 in	10 %	20 mm	0.787 in	1M	PC Pins	12.7 mm	Sealed
TT Electronics/BI P260T-S1BS4CB10K	Slotted	6.35 mm	0.25 in	Linear	1	Conductive Plastic	295 °	3/8-32	1	Top Adjustment	0.5 W	0.5 W		12.7 mm			0.5 "	0.5 in	10 %			10k	PC Pins	12.7 mm	Sealed
TT Electronics/BI P260T-S1BF4DB10K	Flatted	6.35 mm	0.25 in	Linear	1	Conductive Plastic	295 °	3/8-32	1	Top Adjustment	0.5 W	0.5 W		12.7 mm			0.5 "	0.5 in	10 %			10k	PC Pins	12.7 mm	Sealed
TT Electronics/BI P260T-D1BS4CB10K	Slotted	6.35 mm	0.25 in	Linear	1	Conductive Plastic	295 °	3/8-32	1	Top Adjustment	0.5 W	0.5 W		12.7 mm			0.5 "	0.5 in	10 %			10k	PC Pins	12.7 mm	Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.73
		10	$ 9.41
		25	$ 8.61
		40	$ 8.23
		80	$ 7.69
		230	$ 6.93
		440	$ 6.50
		945	$ 6.16

Description

General part information

P260T Series

100k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.5W, 1/2W PC Pins
