1020ABTFB
ActiveKanebridge
SELF-TAPPING SCREW - TYPE AB - 6
1020ABTFB
ActiveKanebridge
SELF-TAPPING SCREW - TYPE AB - 6
Description
General part information
1020ABTFB

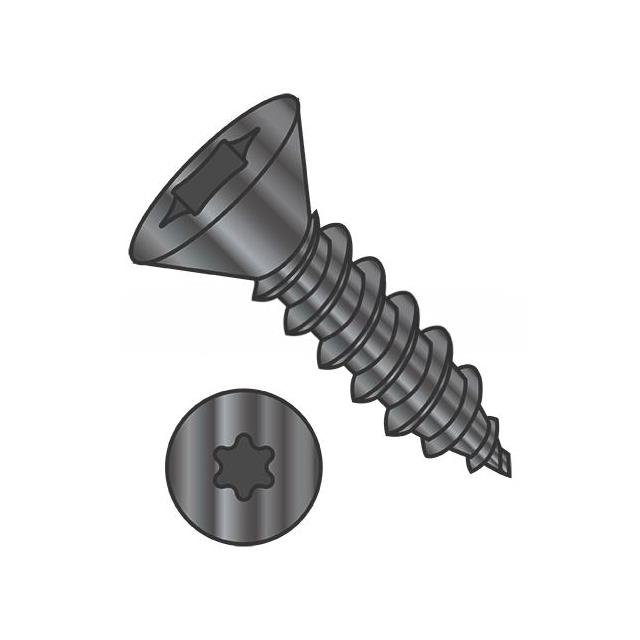

#10-16 Flat Head Self-Tapping Screw 6-Lobe Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1020ABTFB |
|---|---|
| Drive Type | 6-Lobe |
| Features | Standard |
| Head Diameter | 0.348 in |
| Head Height | 0.348 in |
| Length - Below Head | 1.25 in |
| Length - Overall | 1.598 in |
| Material | Steel |
| Plating | Black Oxide |
| Screw Head Type | Flat Head |
| Thread Size (Max) | 16 mm |
| Thread Size (Min) | 10 mm |
| Type | Self-Tapping Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
