ASPI-0316S-1R5N-T3
ObsoleteAbracon LLC
FIXED IND 1.5UH 1.6A 88 MOHM SMD
ASPI-0316S-1R5N-T3
ObsoleteAbracon LLC
FIXED IND 1.5UH 1.6A 88 MOHM SMD
Description
General part information
ASPI-0316S-1R5N-T3

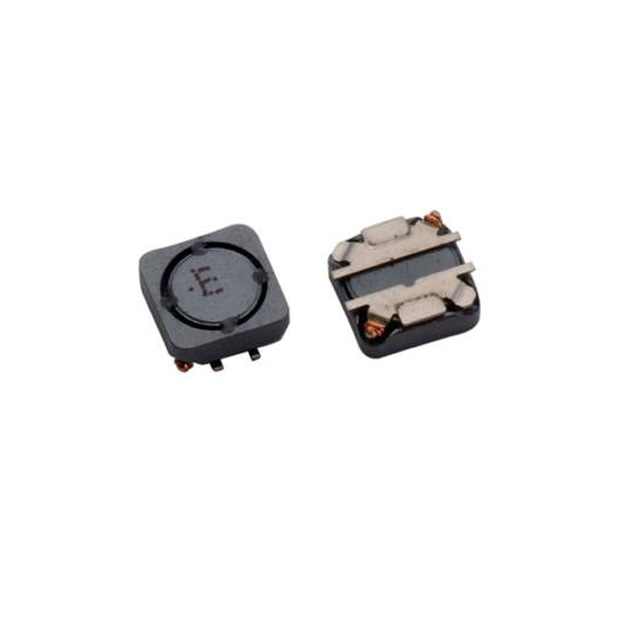

1.5 µH Shielded Drum Core, Wirewound Inductor 1.6 A 88mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | ASPI-0316S-1R5N-T3 |
|---|---|
| Current - Saturation (Isat) | 1.5 A |
| Current Rating | 1.6 A |
| DC Resistance (DCR) (Max) | 88 mOhm |
| Height - Seated (Max) | 0.059 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.126 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
