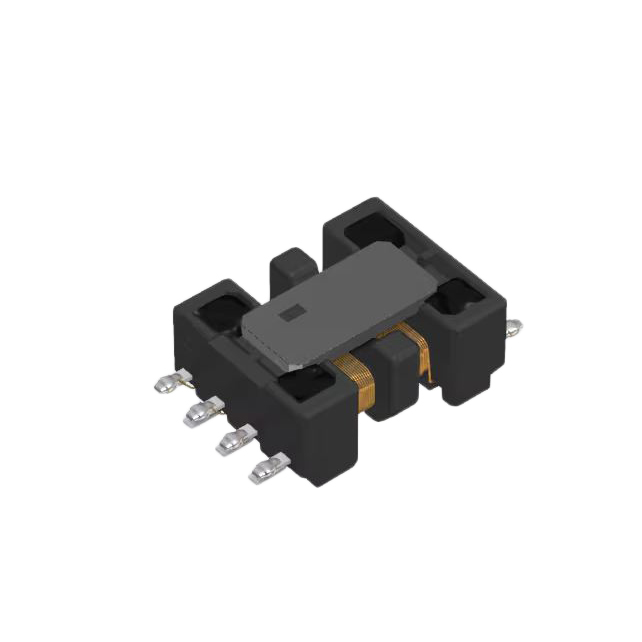

VMT45DR-X02S1P4
ActiveTDK Corporation
TRANSFORMER
VMT45DR-X02S1P4
ActiveTDK Corporation
TRANSFORMER
Description
General part information
VMT45DR-X02S1P4
150µH Battery Management Pulse Transformer 1:1 Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | VMT45DR-X02S1P4 |
|---|---|
| Height - Seated (Max) | 0.189 in |
| Inductance | 150 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.425 in |
| Size / Dimension Width | 0.335 in |
| Transformer Type | Battery Management |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
