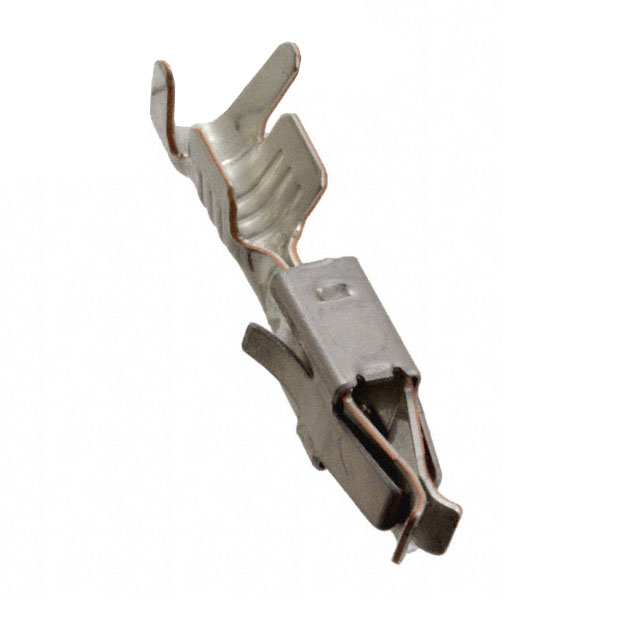

927768-6

Active

TE Connectivity AMP Connectors

CONN SOCKET 13-17AWG CRIMP SILVR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SOCKET 13-17AWG CRIMP SILVR

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SOCKET 13-17AWG CRIMP SILVR

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Pin or Socket	Type	Contact Termination	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 927768-6	13 AWG	17 AWG	Silver	Socket	Power	Crimp	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 927768-3	13 AWG	17 AWG	Tin	Socket	Power	Crimp	1 Ám	39.4 Áin
TE Connectivity AMP Connectors 927768-1	13 AWG	17 AWG	Tin	Socket	Power	Crimp	1 Ám	39.4 Áin
TE Connectivity AMP Connectors 1-927768-1	13 AWG	17 AWG	Gold	Socket	Power	Crimp	0.8 µm	31.5 µin
TE Connectivity AMP Connectors 2-927768-1	13 AWG	17 AWG	Gold	Socket	Power	Crimp	0.8 µm	31.5 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Silver 13-17 AWG Crimp Power
