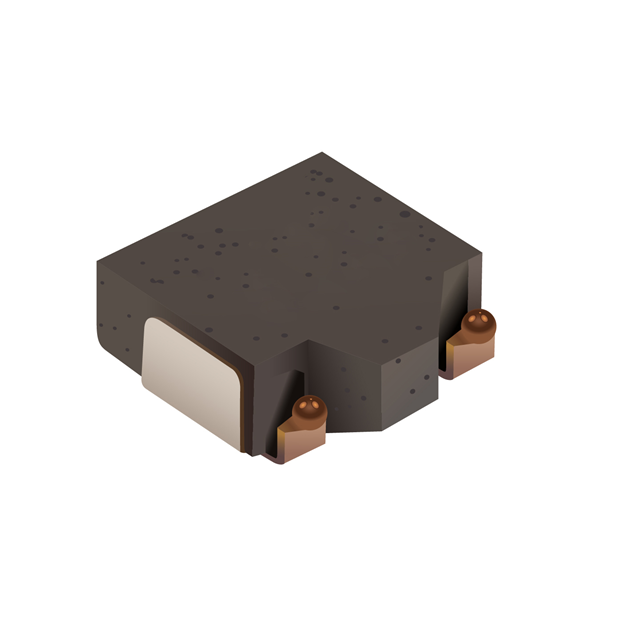

SRP0315-1R5K
ActiveBourns Inc.
FIXED IND 1.5UH 4.1A 48 MOHM SMD
SRP0315-1R5K
ActiveBourns Inc.
FIXED IND 1.5UH 4.1A 48 MOHM SMD
Description
General part information
SRP0315-1R5K
1.5 µH Shielded Inductor 4.1 A 48mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP0315-1R5K |
|---|---|
| Current - Saturation (Isat) | 4.4 A |
| Current Rating | 4.1 A |
| DC Resistance (DCR) (Max) | 48 mOhm |
| Frequency - Self Resonant | 46 MHz |
| Height - Seated (Max) | 0.059 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Q | 14 |
| Shielding | Shielded |
| Size / Dimension Length | 0.134 in |
| Size / Dimension Width | 0.122 in |
| Tolerance | 10 % |
