FMC00869-12
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NJACK 1
FMC00869-12
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NJACK 1
Description
General part information
FMC00869-12

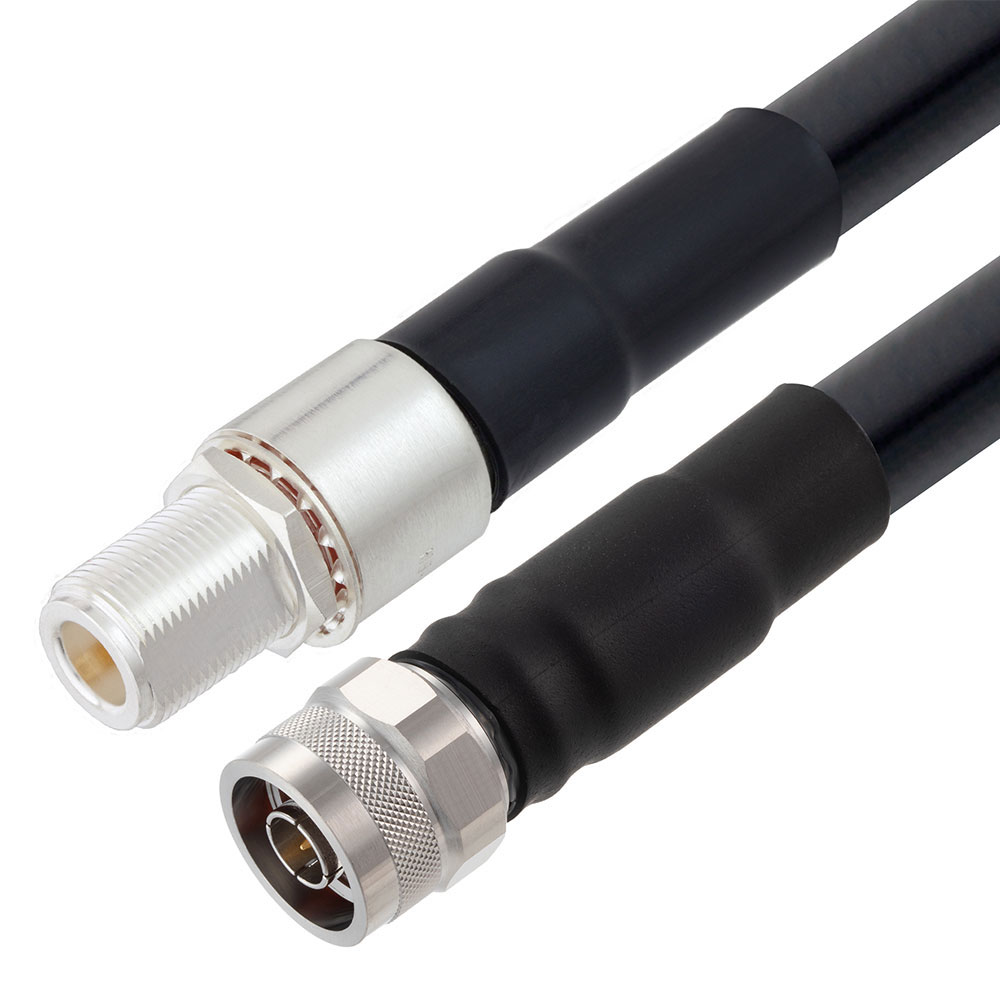

Cable Assembly Coaxial N-Type to N-Type LMR 600 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC00869-12 |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 600 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
