9510 060500

Active

Belden Inc.

MULTI-PAIR 20COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 20COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9510 060500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.368 in
Jacket (Insulation) Diameter [diameter]	9.35 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.864 mm
Jacket (Insulation) Thickness	0.034 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	20
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Material	Voltage	Features	Wire Gauge	Number of Conductors	Jacket (Insulation) Material	Usage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Insulation	Shield Type	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Shield Coverage	Ratings	Color	For Use With/Related Products	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Belden Inc. 9510 060500	Copper Tinned	300 V	Drain Wire	24 AWG	20	Poly-Vinyl Chloride (PVC)	Computer	Chrome	0.368 in	9.35 mm	0.864 mm	0.034 in	-30 ░C	80 C	Multi-Pair	Poly-Vinyl Chloride (PVC)	Foil	500 '	152.4 m	32 AWG	7	Aluminum	100 %	UL Style 2464
Belden Inc. 9510-1901																									Black	Enclosures	Wire Manager	25.4 mm	19 in	482.6 mm	1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 6.05

General part information

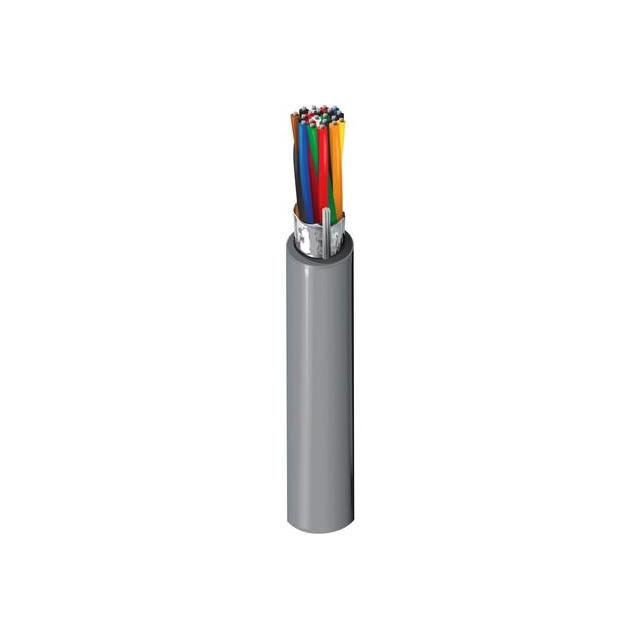

20 (10 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 500.0' (152.4m)
