1716551
ActivePhoenix Contact
TERM BLK HEADER 7POS GREEN
1716551
ActivePhoenix Contact
TERM BLK HEADER 7POS GREEN
Description
General part information
1716551

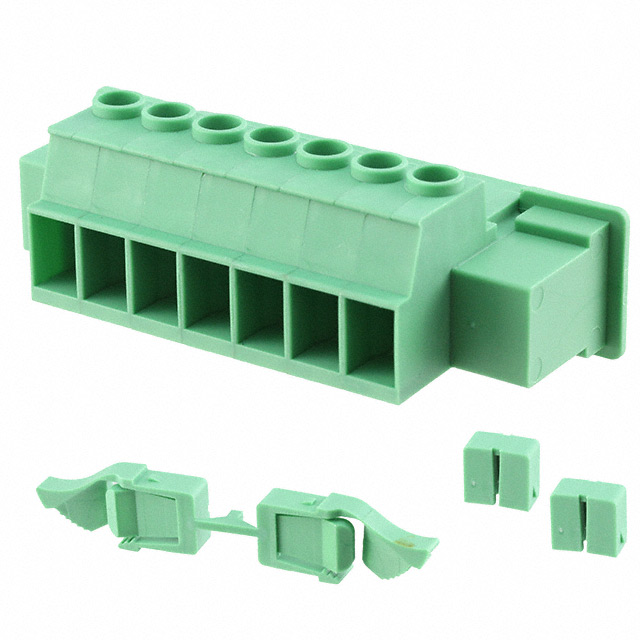

7 Position Terminal Block Header, Male Pins Green
Technical Specifications
Parameters and characteristics for this part
| Specification | 1716551 |
|---|---|
| Color | Green |
| Current - UL | 41 A |
| Front Panel Wire Connection (Method) | Header, Male Pins |
| Number of Levels | 1 |
| Panel Mount Type | 2 Piece, Snap Lock - Front Flange |
| Panel Thickness (Max) | 0.118 in |
| Panel Thickness (Min) | 0.039 in |
| Pitch | 0.3 in |
| Positions Per Level | 7 |
| Rear Panel Wire Connection | Bolt, Screw Clamp |
| Rear Panel Wire Entry Orientation | Parallel to Panel |
| Voltage - UL | 600 V |
| Width | 3.104 in |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 8 AWG |
