Description
General part information
WA700/2700SMA

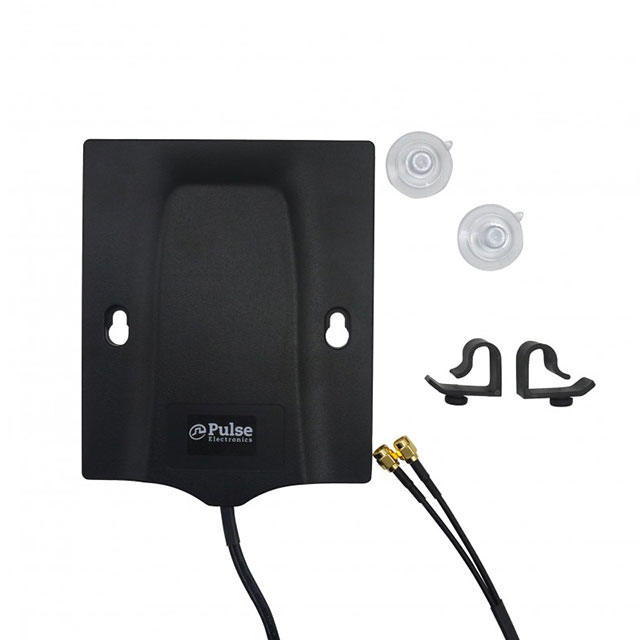

RF ANTENNA LTE Molded SMA Male Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | WA700/2700SMA |
|---|---|
| Antenna Type | Molded |
| Applications | LTE |
| Features | 1m, Cable |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 700 MHz |
| Frequency Range (Band 2) Maximum | 1.99 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Frequency Range (Band 3) Maximum | 2.17 GHz |
| Frequency Range (Band 3) Minimum | 2.11 GHz |
| Frequency Range (Band 4) Maximum | 2.7 GHz |
| Frequency Range (Band 4) Minimum | 2.5 GHz |
| Gain | 3.5 dBi, 2.5 dBi |
| Height (Max) | 0.201 in |
| Mounting Type | Chassis Mount |
| Number of Bands | 4 |
| Power - Max | 2 VA |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 2.5 |
