FMA28-M2M2-S12

Active

ConductRF

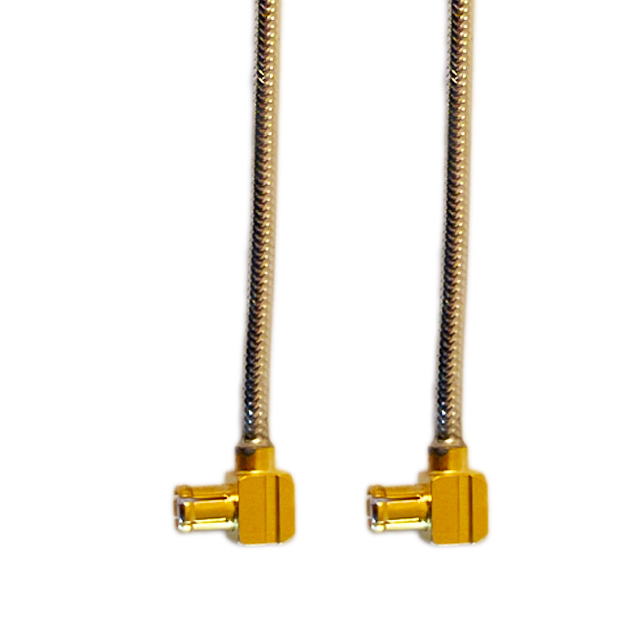

CBL ASSY MCX PLUG TO PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FMA28-M2M2-S12

Active

ConductRF

CBL ASSY MCX PLUG TO PLUG 12"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.90
		5	$ 32.55
		10	$ 29.13
		25	$ 26.36
		50	$ 25.16
		100	$ 24.06
		250	$ 22.13
		500	$ 20.50
		1000	$ 19.76

Description

General part information

FMA28 Series

Cable Assembly Coaxial MCX to MCX Hand Formable .085 12.00" (304.80mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMA28-M2M2-S12	FMA28 Series

1st Connector	Right Angle, MCX Plug	MCX Plug, SMA Plug, SMP Jack, Right Angle, SMA Jack
1st Connector Mounting Feature	-	Bulkhead - Front Side Nut
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Panel Mount
1st Contact Gender	Male	Male, Female
2nd Connector	MCX Plug, Right Angle	MCX Plug, Right Angle, SMP Jack, Right Angle, SMP Jack, SMA Plug, SMA Plug, Right Angle, MCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male, Female
Cable Type	Hand Formable .085	Hand Formable .085
Color	Gray	Gray
Connector Impedance	50 Ohms	50 Ohms
Features	Shielded	Shielded
Frequency - Max [Max]	6000 MHz	18 - 6000 MHz
Length	12 "	5 - 36 "
Length	304.8 mm	1.5 - 609.6 mm
Length	-	457.2 mm
Length	-	406.4 - 457.2 mm
Length	-	16 in
Length	-	5 ft
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	MCX to MCX	MCX to MCX, SMA to SMP, SMP to SMP, SMA to SMA, SMA to MCX

FMA28 Series

CBL ASSY MCX PLUG TO PLUG 18"

Part	2nd Connector Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	2nd Contact Gender	1st Connector Mounting Type	1st Contact Gender	Connector Impedance	Style	Features	Overall Impedance	2nd Connector	Frequency - Max [Max]	Length [x]	Length [x]	1st Connector	Cable Type	Length [x]	Length	Length
ConductRF FMA28-M1M2-S18	Free Hanging (In-Line)	-55 °C	125 °C	Gray	Male	Free Hanging (In-Line)	Male	50 Ohms	MCX to MCX	Shielded	50 Ohms	MCX Plug, Right Angle	6000 MHz	457.2 mm	457.2 mm	MCX Plug	Hand Formable .085
ConductRF FMA28-S1PR-S16	Free Hanging (In-Line)	-55 °C	125 °C	Gray	Female	Free Hanging (In-Line)	Male	50 Ohms	SMA to SMP	Shielded	50 Ohms	SMP Jack, Right Angle	18 GHz		406.4 mm	SMA Plug	Hand Formable .085	16 in
ConductRF FMA28-PFPR-S16	Free Hanging (In-Line)	-55 °C	125 °C	Gray	Female	Free Hanging (In-Line)	Female	50 Ohms	SMP to SMP	Shielded	50 Ohms	SMP Jack, Right Angle	18 GHz		406.4 mm	SMP Jack	Hand Formable .085	16 in
ConductRF FMA28-M1M2-S12	Free Hanging (In-Line)	-55 °C	125 °C	Gray	Male	Free Hanging (In-Line)	Male	50 Ohms	MCX to MCX	Shielded	50 Ohms	MCX Plug, Right Angle	6000 MHz			MCX Plug	Hand Formable .085		12 "	304.8 mm
ConductRF FMA28-S1PF-S16	Free Hanging (In-Line)	-55 °C	125 °C	Gray	Female	Free Hanging (In-Line)	Male	50 Ohms	SMA to SMP	Shielded	50 Ohms	SMP Jack	18 GHz		406.4 mm	SMA Plug	Hand Formable .085	16 in
ConductRF FMA28-S1S1-S08	Free Hanging (In-Line)	-55 °C	125 °C	Gray	Male	Free Hanging (In-Line)	Male	50 Ohms	SMA to SMA	Shielded	50 Ohms	SMA Plug	18 GHz			SMA Plug	Hand Formable .085		8 in	203.2 mm
ConductRF FMA28-S2M1-S18	Free Hanging (In-Line)	-55 °C	125 °C	Gray	Male	Free Hanging (In-Line)	Male	50 Ohms	SMA to MCX	Shielded	50 Ohms	MCX Plug, Right Angle	6000 MHz	457.2 mm	457.2 mm	Right Angle, SMA Plug	Hand Formable .085
ConductRF FMA28-S1S2-S08	Free Hanging (In-Line)	-55 °C	125 °C	Gray	Male	Free Hanging (In-Line)	Male	50 Ohms	SMA to SMA	Shielded	50 Ohms	SMA Plug, Right Angle	18 GHz			SMA Plug	Hand Formable .085		8 in	203.2 mm
ConductRF FMA28-S2S2-S24	Free Hanging (In-Line)	-55 °C	125 °C	Gray	Male	Free Hanging (In-Line)	Male	50 Ohms	SMA to SMA	Shielded	50 Ohms	SMA Plug, Right Angle	18 GHz			Right Angle, SMA Plug	Hand Formable .085		24 "	609.6 mm
ConductRF FMA28-S1PF-S24	Free Hanging (In-Line)	-55 °C	125 °C	Gray	Female	Free Hanging (In-Line)	Male	50 Ohms	SMA to SMP	Shielded	50 Ohms	SMP Jack	18 GHz			SMA Plug	Hand Formable .085		24 "	609.6 mm
