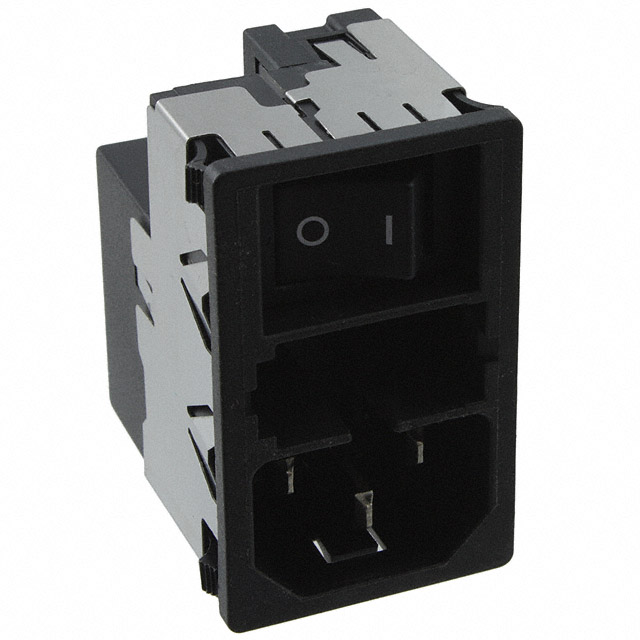

KMF1.1121.11

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	KMF1.1121.11

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	2 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.8 mm
Panel Cutout Dimensions [y]	47.8 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	1 mm
Panel Thickness [Min]	0.039 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Mounting Type	Fuse Holder, Drawer	Filter Type	Features	Termination	Termination	Switch Features	Connector Style	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Ingress Protection	Accomodates a Fuse	Current Rating - Appliance Inlet	Approval Agency	Current Rating - Filter	Connector Type	Material Flammability Rating	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
SCHURTER Inc. KMF1.1121.11	Panel Mount, Snap-In	Drawer Sold Separate	Filtered (EMI, RFI) - Commercial	Shielded	0.189 ", 4.8 mm	Quick Connect	Switch On-Off	IEC 320-C14	2.5 mm	1 mm	0.098 in	0.039 in	IP40		10 A	CCC, cULus, ENEC	2 A	Receptacle, Male Blades - Module	UL94 V-0	250 VAC	47.8 mm	28.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
