A6SN-5104-P

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A6SN-5104-P

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.01
		10	$ 2.84
		25	$ 2.58
		100	$ 2.24
		250	$ 2.03
	Digi-Reel®	1	$ 3.01
		10	$ 2.84
		25	$ 2.58
		100	$ 2.24
		250	$ 2.03
	Tape & Reel (TR)	700	$ 1.88
		1400	$ 1.74
		3500	$ 1.58
		4900	$ 1.52

Description

General part information

A6SN Series

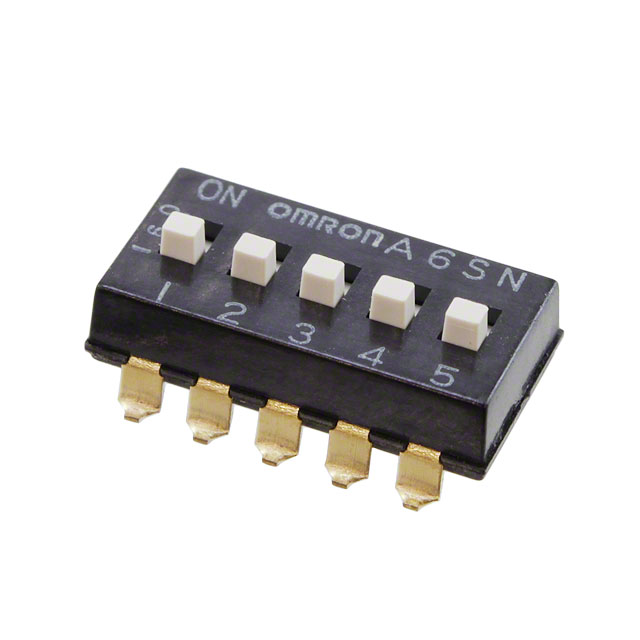

Dip Switch SPST 5 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC

Documents

Technical documentation and resources

Datasheet

How to Read Date Codes

Related Document

Specification	A6SN-5104-P	A6SN Series

Actuator Level	Raised	Raised, Flush, Recessed
Actuator Type	Slide (Standard)	Slide (Standard)
Circuit	SPST	SPST
Current Rating (Amps)	25 mA	25 mA
Electrical Life	1000 Cycles	1000 Cycles
Features	-	Tape Seal
Height Above Board	5.45 mm	4.45 - 5.45 mm
Height Above Board	-	0.175 in
Height Above Board [z]	0.214 in	0.214 in
Length	-	0.376 - 0.876 in
Length	-	9.55 - 22.26 mm
Length [x]	14.63 mm	4.48 - 27.34 mm
Length [x]	0.576 "	0.176 - 1.076 "
Mounting Type	Surface Mount	Surface Mount
Number of Positions	-	1 - 10
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	Gull Wing	Gull Wing
Voltage Rating	24 VDC	24 VDC
Washable	True	True

Part

Washable

Electrical Life

Actuator Level

Operating Temperature [Min]

Operating Temperature [Max]

Voltage Rating

Height Above Board [z]

Height Above Board

Circuit

Pitch [x]

Pitch

Pitch [x]

Length [x]

Actuator Type

Termination Style

Current Rating (Amps)

Mounting Type

Height Above Board

Number of Positions

Length

Features

Omron Electronics Inc-EMC Div

A6SN-5104-P

1000 Cycles

Raised

-30 ░C

85 °C

24 VDC

0.214 in

5.45 mm

SPST

0.1 in

Full

2.54 mm

14.63 mm

0.576 "

Slide (Standard)

Gull Wing

25 mA

Surface Mount

Omron Electronics Inc-EMC Div

A6SN-5101-R100

1000 Cycles

Flush, Recessed

-30 ░C

85 °C

24 VDC

4.45 mm

SPST

0.1 in

Full

2.54 mm

14.63 mm

0.576 "

Slide (Standard)

Gull Wing

25 mA

Surface Mount

0.175 in

Omron Electronics Inc-EMC Div

A6SN-4101

1000 Cycles

Flush, Recessed

-30 ░C

85 °C

24 VDC

4.45 mm

SPST

0.1 in

Full

2.54 mm

Slide (Standard)

Gull Wing

25 mA

Surface Mount

0.175 in

0.476 in

12.09 mm

Omron Electronics Inc-EMC Div

A6SN-3101

1000 Cycles

Flush, Recessed

-30 ░C

85 °C

24 VDC

4.45 mm

SPST

0.1 in

Full

2.54 mm

Slide (Standard)

Gull Wing

25 mA

Surface Mount

0.175 in

0.376 "

9.55 mm

Omron Electronics Inc-EMC Div

A6SN-3101-P

1000 Cycles

Flush, Recessed

-30 ░C

85 °C

24 VDC

4.45 mm

SPST

0.1 in

Full

2.54 mm

Slide (Standard)

Gull Wing

25 mA

Surface Mount

0.175 in

0.376 "

9.55 mm

Omron Electronics Inc-EMC Div

A6SN-2101

1000 Cycles

Flush, Recessed

-30 ░C

85 °C

24 VDC

4.45 mm

SPST

0.1 in

Full

2.54 mm

7 mm

0.276 in

Slide (Standard)

Gull Wing

25 mA

Surface Mount

0.175 in

Omron Electronics Inc-EMC Div

A6SN-8104

1000 Cycles

Raised

-30 ░C

85 °C

24 VDC

0.214 in

5.45 mm

SPST

0.1 in

Full

2.54 mm

Slide (Standard)

Gull Wing

25 mA

Surface Mount

0.876 "

22.26 mm

Omron Electronics Inc-EMC Div

A6SN-0101-P

1000 Cycles

Flush, Recessed

-30 ░C

85 °C

24 VDC

4.45 mm

SPST

0.1 in

Full

2.54 mm

27.34 mm

1.076 in

Slide (Standard)

Gull Wing

25 mA

Surface Mount

0.175 in

Omron Electronics Inc-EMC Div

A6SN-4101-P

1000 Cycles

Flush, Recessed

-30 ░C

85 °C

24 VDC

4.45 mm

SPST

0.1 in

Full

2.54 mm

Slide (Standard)

Gull Wing

25 mA

Surface Mount

0.175 in

0.476 in

12.09 mm

Omron Electronics Inc-EMC Div

A6SN-2102-P

1000 Cycles

Flush, Recessed

-30 ░C

85 °C

24 VDC

4.45 mm

SPST

0.1 in

Full

2.54 mm

7 mm

0.276 in

Slide (Standard)

Gull Wing

25 mA

Surface Mount

0.175 in

Tape Seal

Part	Electrical Life	Actuator Level	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Height Above Board [z]	Height Above Board	Circuit	Pitch [x]	Pitch	Pitch [x]	Length [x]	Length [x]	Actuator Type	Termination Style	Current Rating (Amps)	Mounting Type	Height Above Board	Number of Positions	Length	Length	Features
Omron Electronics Inc-EMC Div A6SN-5104-P	1000 Cycles	Raised	-30 ░C	85 °C	24 VDC	0.214 in	5.45 mm	SPST	0.1 in	Full	2.54 mm	14.63 mm	0.576 "	Slide (Standard)	Gull Wing	25 mA	Surface Mount
Omron Electronics Inc-EMC Div A6SN-5101-R100	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm	14.63 mm	0.576 "	Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in
Omron Electronics Inc-EMC Div A6SN-4101	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm			Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in	4	0.476 in	12.09 mm
Omron Electronics Inc-EMC Div A6SN-3101	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm			Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in		0.376 "	9.55 mm
Omron Electronics Inc-EMC Div A6SN-3101-P	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm			Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in		0.376 "	9.55 mm
Omron Electronics Inc-EMC Div A6SN-2101	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm	7 mm	0.276 in	Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in	2
Omron Electronics Inc-EMC Div A6SN-8104	1000 Cycles	Raised	-30 ░C	85 °C	24 VDC	0.214 in	5.45 mm	SPST	0.1 in	Full	2.54 mm			Slide (Standard)	Gull Wing	25 mA	Surface Mount		8	0.876 "	22.26 mm
Omron Electronics Inc-EMC Div A6SN-0101-P	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm	27.34 mm	1.076 in	Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in	10
Omron Electronics Inc-EMC Div A6SN-4101-P	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm			Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in	4	0.476 in	12.09 mm
Omron Electronics Inc-EMC Div A6SN-2102-P	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm	7 mm	0.276 in	Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in	2			Tape Seal
