85931-6

Active

TE Connectivity AMP Connectors

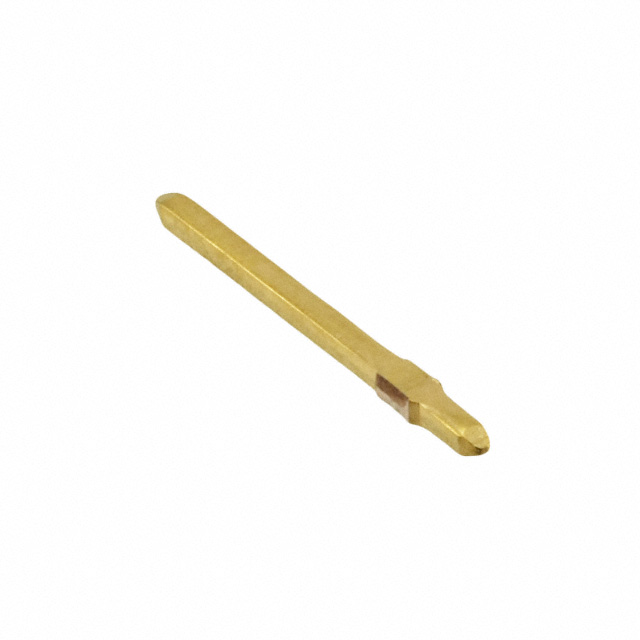

CONN PC PIN SQUARE 0.025 GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PC PIN SQUARE 0.025 GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PC PIN SQUARE 0.025 GOLD

Part	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Pin Size - Above Flange	Pin Size - Above Flange	Mounting Type	Contact Finish	Terminal Type	Terminal Style	Insulation	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Length - Overall [x]	Length - Overall [x]	Termination	Length - Overall	Length - Overall
TE Connectivity AMP Connectors 85931-2	0.038 in	0.036 "	0.91 mm	0.97 mm	0.64 mm	0.025 in	Through Hole	Gold	Single Post	Smooth	Non-Insulated	0.76 Ám	30 Áin	Phosphor Bronze	1.106 in	28.1 mm	Press-Fit
TE Connectivity AMP Connectors 85931-6	0.038 in	0.036 "	0.91 mm	0.97 mm	0.64 mm	0.025 in	Through Hole	Gold	Single Post	Smooth	Non-Insulated	0.38 µm	15 µin	Phosphor Bronze			Press-Fit	11.25 mm	0.443 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Post Terminal Connector Through Hole Gold 0.025" (0.64mm) Square

Technical documentation and resources

No documents available
