T4140L12041-000
ActiveTE Connectivity AMP Connectors

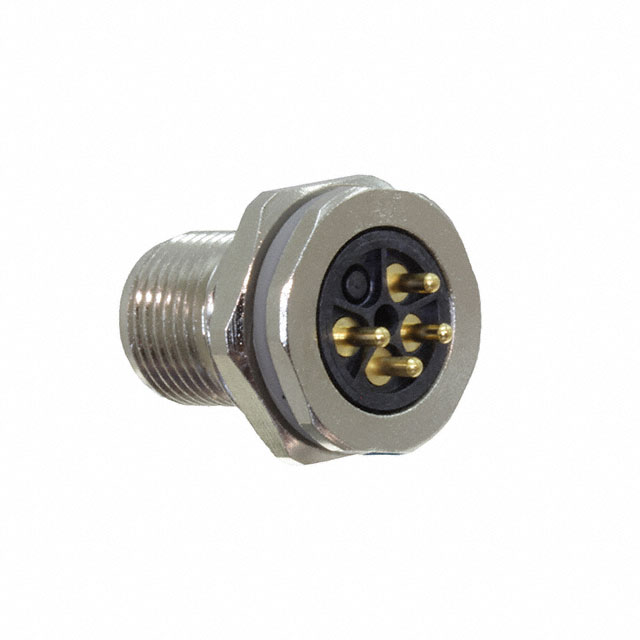

CONN PLUG MALE 4POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4140L12041-000
ActiveTE Connectivity AMP Connectors
CONN PLUG MALE 4POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T4140L12041-000 |
|---|---|
| Applications | Industrial, Lighting, Automation Control |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 16 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 1 |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | L |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 63 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.44 | |
| 10 | $ 5.61 | |||
| 25 | $ 5.46 | |||
| 50 | $ 5.32 | |||
| 100 | $ 5.20 | |||
T4140L Series
CONN PLUG MALE 4POS GOLD SOLDER
| Part | Termination | Shielding | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Material | Contact Finish - Mating | Connector Type | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Primary Material | Ingress Protection | Current Rating (Amps) | Material Flammability Rating | Shell Material | Insert Material | Mounting Feature | Applications | Orientation | Shell Size - Insert | Color | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4140L12041-000 | Solder | Unshielded | Nickel | 85 °C | -40 °C | Panel Mount, Through Hole | Copper Alloy | Gold | Male Pins, Plug | 1 | 3 | 4 | Metal | IP67 - Dust Tight, Waterproof | 16 A | UL94 V-0 | Copper Alloy | Liquid Crystal Polymer (LCP) | Bulkhead - Front Side Nut | Automation Control, Industrial, Lighting | L | M12-4 | Silver | 63 V |
Description
General part information
T4140L Series
4 (3 Power + PE) Position Circular Connector Plug, Male Pins Solder
