5028BP8
ActiveKanebridge
PLOW BOLT - FLAT HEAD - GRADE 8
5028BP8
ActiveKanebridge
PLOW BOLT - FLAT HEAD - GRADE 8
Description
General part information
5028BP8

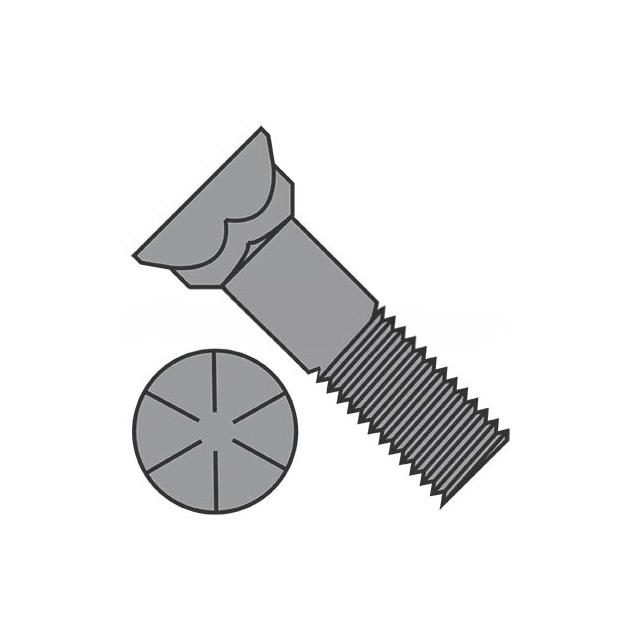

1/2"-13 Flat Head Plow Bolt Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 5028BP8 |
|---|---|
| Features | Standard |
| Head Diameter | 0.91 in |
| Head Height | 0.396 in |
| Length - Below Head | 1.75 in |
| Length - Overall | 2.146 in |
| Material | Steel |
| Plating | Plain |
| Screw Head Type | Flat Head |
| Thread Pitch (TPI) | 13 TPI |
| Thread Size (Nominal) | 0.5 in |
| Type | Plow Bolt |
