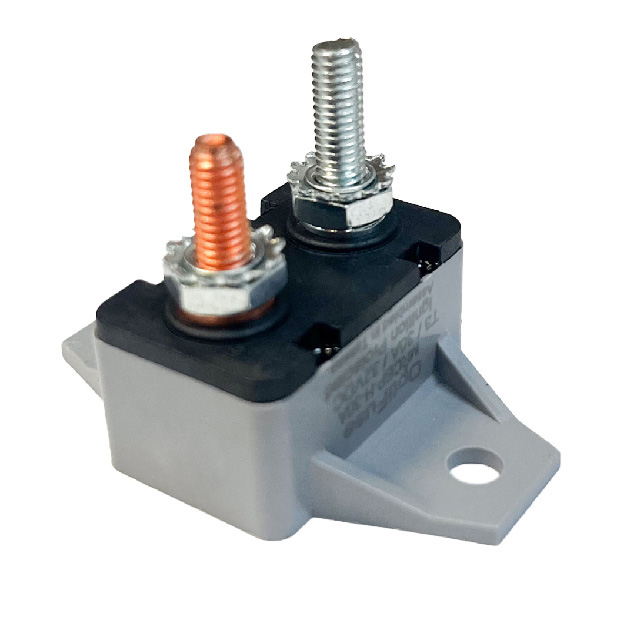

ACBP-H-8A
ActiveOptiFuse
CIR BRKR 8A 32VDC AUTO RESET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACBP-H-8A
ActiveOptiFuse
CIR BRKR 8A 32VDC AUTO RESET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ACBP-H-8A | ACBP-H Series |
|---|---|---|
| Actuator Type | Automatic Reset | Automatic Reset |
| Approval Agency | IP 63, SAE J1171, SAE J553 | IP 63, SAE J1171, SAE J553 |
| Breaker Type | Shortstop | Shortstop |
| Current Rating (Amps) | 8 A | 8 - 30 A |
| Illumination | None | None |
| Number of Poles | 1 | 1 |
| Voltage Rating - DC | 32 V | 32 V |
ACBP-H Series
CIR BRKR 30A 32VDC AUTO RESET
| Part | Number of Poles | Voltage Rating - DC | Current Rating (Amps) | Actuator Type | Approval Agency | Breaker Type | Illumination |
|---|---|---|---|---|---|---|---|
OptiFuse ACBP-H-30C | 1 | 32 V | 30 A | Automatic Reset | IP 63, SAE J1171, SAE J553 | Shortstop | None |
OptiFuse ACBP-H-30A | 1 | 32 V | 30 A | Automatic Reset | IP 63, SAE J1171, SAE J553 | Shortstop | None |
OptiFuse ACBP-H-20A | 1 | 32 V | 20 A | Automatic Reset | IP 63, SAE J1171, SAE J553 | Shortstop | None |
OptiFuse ACBP-H-15C | 1 | 32 V | 15 A | Automatic Reset | IP 63, SAE J1171, SAE J553 | Shortstop | None |
OptiFuse ACBP-H-8A | 1 | 32 V | 8 A | Automatic Reset | IP 63, SAE J1171, SAE J553 | Shortstop | None |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.43 | |
| 10 | $ 6.05 | |||
| 25 | $ 5.66 | |||
| 50 | $ 5.27 | |||
| 100 | $ 4.88 | |||
| 250 | $ 4.80 | |||
| 500 | $ 4.71 | |||
| 1000 | $ 4.63 | |||
Description
General part information
ACBP-H Series
Circuit Breaker Shortstop 8A AC 32 V DC Automatic Reset
