GW P9LM31.EM-NRNT-XX55-1-150-R18
Obsoleteams-OSRAM USA INC.

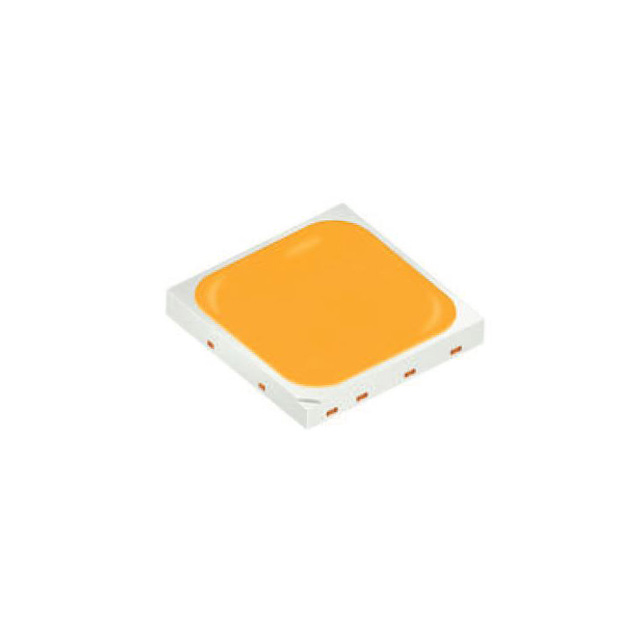

LED DURIS S8 NEUT WHT 4000K SMD
GW P9LM31.EM-NRNT-XX55-1-150-R18
Obsoleteams-OSRAM USA INC.
LED DURIS S8 NEUT WHT 4000K SMD
Description
General part information
GW P9LM31.EM-NRNT-XX55-1-150-R18
LED Lighting DURIS® S 8 White, Neutral 4000K 18.6V 150mA 120° 2020 (5050 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | GW P9LM31.EM-NRNT-XX55-1-150-R18 |
|---|---|
| CCT (K) | 4000 K |
| Color | White, Neutral |
| CRI (Color Rendering Index) | 80 |
| Current - Max | 200 mA |
| Current - Test | 150 mA |
| Flux (Maximum) | 419 lm |
| Flux (Minimum) | 330 lm |
| Flux (Nominal) | 375 lm |
| Height - Seated (Max) | 0.031 in |
| Lumens/Watt | 134 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2020 (5050 Metric) |
| Package Name | SMD |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.197 in |
| Thermal Resistance of Package | 6.3 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 18.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
