SD15C
ActiveMDD

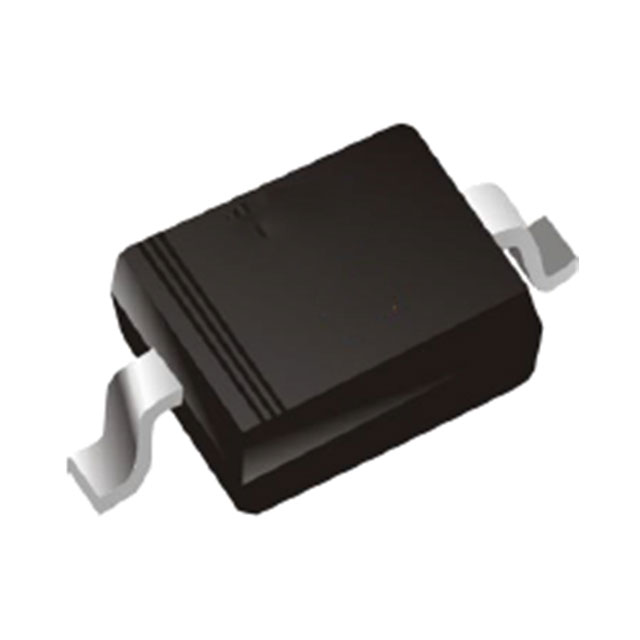

TVS DIODE 15VWM 24VC SOD323
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SD15C
ActiveMDD
TVS DIODE 15VWM 24VC SOD323
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SD15C |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 120 pF |
| Current - Peak Pulse (10/1000µs) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-323, SC-76 |
| Power - Peak Pulse | 350 W |
| Power Line Protection | True |
| Supplier Device Package | SOD-323 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 16.7 V |
| Voltage - Reverse Standoff (Typ) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.32 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.32 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.08 | ||
| 6000 | $ 0.08 | |||
| 6000 | $ 0.15 | |||
| 9000 | $ 0.07 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.05 | |||
Description
General part information
SD15C
Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Documents
Technical documentation and resources
