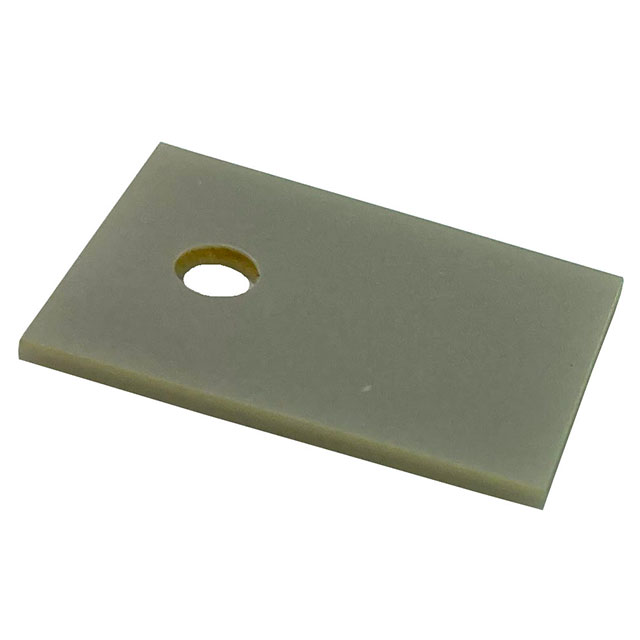

XL25D-TO220-20-14-1

Active

t-Global Technology

CERAMIC HEAT SPREADER 20X14X1MM

Search across all available documentation for this part.

Active

t-Global Technology

CERAMIC HEAT SPREADER 20X14X1MM

Technical Specifications

Parameters and characteristics commom to parts in this series

CERAMIC HEAT SPREADER 20X14X0.63

Part	Material	Shelf Life	Width	Width	Length [x]	Length [x]	Shape	Type	Package Cooled	Attachment Method	Length	Length	Width [y]	Width [y]	Fin Height [z]	Fin Height [z]	Width [x]	Width [x]
t-Global Technology XL25D-TO220-20-14-0.64	Ceramic	60 Months	0.551 in	14 mm	0.787 "	20 mm	Rectangular	Heat Spreader	TO-220	Thermal Tape
t-Global Technology XL25D-TO3P-25-20-0.64	Ceramic	60 Months					Rectangular	Heat Spreader	TO-3P	Thermal Tape	25 mm	0.984 in	20 mm	0.787 in
t-Global Technology XL25D-TO264-28-22-1	Ceramic	60 Months					Rectangular	Heat Spreader	TO-264	Thermal Tape	28 mm	1.102 in			0.039 in	1 mm	22 mm	0.866 "
t-Global Technology XL25D-TO247-22-17-1	Ceramic	60 Months					Rectangular	Heat Spreader	TO-247	Thermal Tape	22 mm	0.866 "			0.039 in	1 mm	17 mm	0.669 in
t-Global Technology XL25D-TO264-28-22-0.64	Ceramic	60 Months					Rectangular	Heat Spreader	TO-264	Thermal Tape	28 mm	1.102 in					22 mm	0.866 "
t-Global Technology XL25D-TO3P-25-20-1	Ceramic	60 Months					Rectangular	Heat Spreader	TO-3P	Thermal Tape	25 mm	0.984 in	20 mm	0.787 in	0.039 in	1 mm
t-Global Technology XL25D-TO247-22-17-0.64	Ceramic	60 Months					Rectangular	Heat Spreader	TO-247	Thermal Tape	22 mm	0.866 "					17 mm	0.669 in
t-Global Technology XL25D-TO220-20-14-1	Ceramic		0.551 in	14 mm	0.787 "	20 mm	Rectangular	Heat Spreader	TO-220	Thermal Tape					0.039 in	1 mm
t-Global Technology XL25D-TO220-18.5-12-1	Ceramic				0.787 "	20 mm	Rectangular	Heat Spreader	TO-220	Thermal Tape					0.039 in	1 mm	18.5 mm	0.728 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Ceramic Heat Spreader
