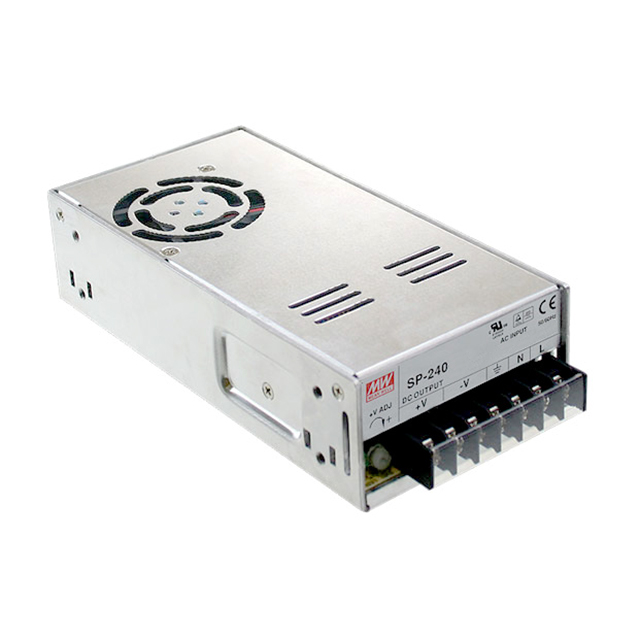

SP-240-5
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 5V 225W
SP-240-5
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 5V 225W
Description
General part information
SP-240-5
Enclosed AC DC Converters 1 Output 5V 88 ~ 264 VAC, 124 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-240-5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CB, TUV, CE |
| Current - Output 1 | 45 A |
| Efficiency | 79 % |
| Features | PFC, Adjustable Output, Universal Input |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 225 W |
| Size / Dimension Height | 1.97 in |
| Size / Dimension Length | 7.48 in |
| Size / Dimension Width | 3.66 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 88 VAC |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 124 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5 V |
