9433 0605000

Active

Belden Inc.

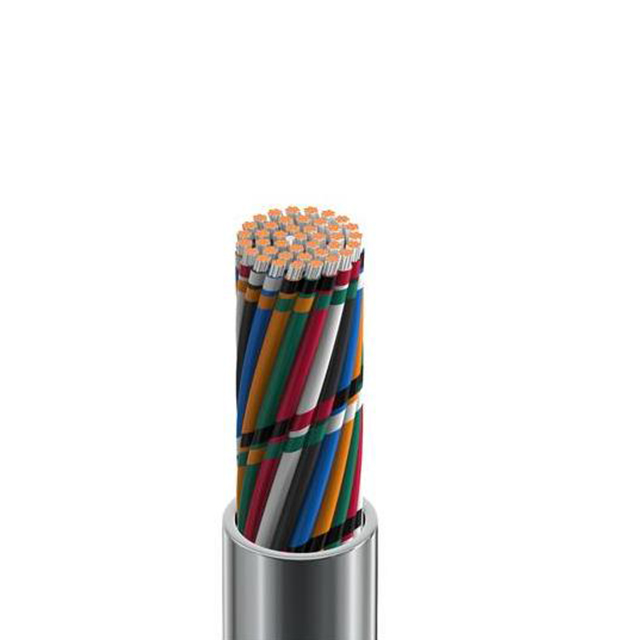

CABLE 40COND 22AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 40COND 22AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9433 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	11.56 mm
Jacket (Insulation) Diameter [diameter]	0.455 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Number of Conductors	40
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Ratings	Wire Gauge	Conductor Insulation	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Length [x]	Length [x]
Belden Inc. 9433 0605000	Audio Control Instrumentation	7	30 AWG	11.56 mm	0.455 in	Poly-Vinyl Chloride (PVC)	UL Style 2576	22 AWG	Poly-Vinyl Chloride (PVC)	Multi-Conductor	-20 C	80 C	40	Copper Tinned	0.04 in	1.016 mm	Chrome
Belden Inc. 9433 060500	Audio Control Instrumentation	7	30 AWG	11.56 mm	0.455 in	Poly-Vinyl Chloride (PVC)	UL Style 2576	22 AWG	Poly-Vinyl Chloride (PVC)	Multi-Conductor	-20 C	80 C	40	Copper Tinned	0.04 in	1.016 mm	Chrome	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 16.10

General part information

40 Conductor Multi-Conductor Cable Chrome 22 AWG 5000' (1524.0m)
