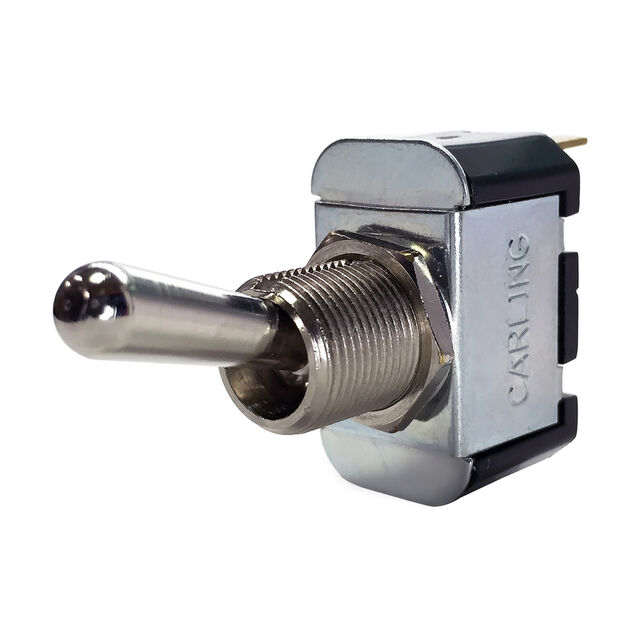

2FA54-78/HDW ASSM

Active

Carling Technologies

SWITCH TOGGLE SPST 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2FA54-78/HDW ASSM

Active

Carling Technologies

SWITCH TOGGLE SPST 15A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2FA54-78/HDW ASSM	2FA54 Series

Actuator Length [x]	17.45 mm	1 - 50.8 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	SPST	SPST
Current Rating (Amps)	15 A	15 A
Electrical Life	50000 Cycles	50000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	65.6 °C	65.6 °C
Operating Temperature [Min]	-17.8 °C	-17.8 °C
Panel Cutout Dimensions [diameter]	12.7 mm	12.7 mm
Switch Function	On-Off	On-Off
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - AC	125 V	125 V

2FA54 Series

SWITCH TOGGLE SPST 15A 125V

Part	Illumination	Voltage Rating - AC	Electrical Life	Actuator Type	Panel Cutout Dimensions [diameter]	Circuit	Actuator Length [x]	Current Rating (Amps)	Switch Function	Termination Style	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]
Carling Technologies 2FA54-52	Non-Illuminated	125 V	50000 Cycles	Standard Round	12.7 mm	SPST	10.31 mm	15 A	On-Off	Screw Terminal	15/32-32	65.6 °C	-17.8 °C
Carling Technologies 2FA54-E8	Non-Illuminated	125 V	50000 Cycles	Standard Round	12.7 mm	SPST	50.8 mm	15 A	On-Off	Screw Terminal	15/32-32	65.6 °C	-17.8 °C
Carling Technologies 2FA54-73/END TERM	Non-Illuminated	125 V	50000 Cycles	Standard Round	12.7 mm	SPST	17.45 mm	15 A	On-Off	Screw Terminal	15/32-32	65.6 °C	-17.8 °C
Carling Technologies 2FA54-63	Non-Illuminated	125 V	50000 Cycles	Standard Round	12.7 mm	SPST	14.28 mm	15 A	On-Off	Screw Terminal	15/32-32	65.6 °C	-17.8 °C
Carling Technologies 2FA54-78/HDW ASSM	Non-Illuminated	125 V	50000 Cycles	Standard Round	12.7 mm	SPST	17.45 mm	15 A	On-Off	Screw Terminal	15/32-32	65.6 °C	-17.8 °C
Carling Technologies 2FA54-78/2 HEX	Non-Illuminated	125 V	50000 Cycles	Standard Round	12.7 mm	SPST	17.45 mm	15 A	On-Off	Screw Terminal	15/32-32	65.6 °C	-17.8 °C
Carling Technologies 2FA54-78	Non-Illuminated	125 V	50000 Cycles	Standard Round	12.7 mm	SPST	17.45 mm	15 A	On-Off	Screw Terminal	15/32-32	65.6 °C	-17.8 °C
Carling Technologies 2FA54-A2	Non-Illuminated	125 V	50000 Cycles	Standard Round	12.7 mm	SPST	1 in	15 A	On-Off	Screw Terminal	15/32-32	65.6 °C	-17.8 °C
Carling Technologies 2FA54-57	Non-Illuminated	125 V	50000 Cycles	Standard Round	12.7 mm	SPST	10.31 mm	15 A	On-Off	Screw Terminal	15/32-32	65.6 °C	-17.8 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	11	$ 9.84

Description

General part information

2FA54 Series

Toggle Switch SPST Panel Mount

Documents

Technical documentation and resources
