61-8420.22

Active

EAO

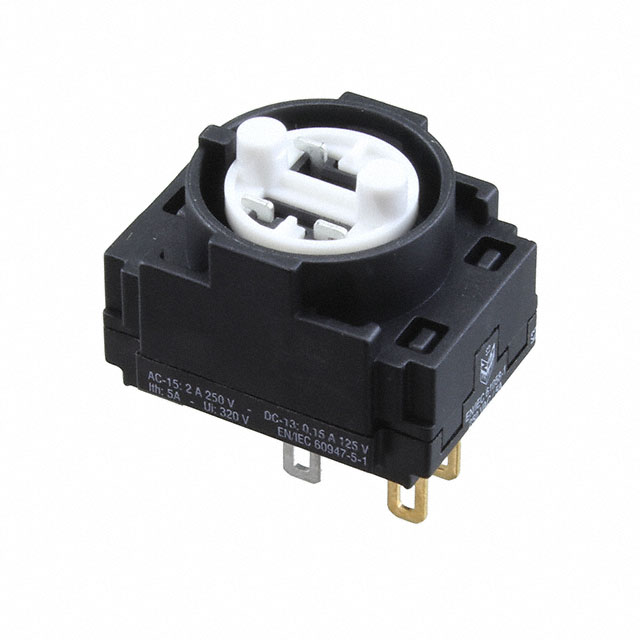

CONTACT BLOCK, 5 A, 250 V, 2 POLE, 61 SERIES, SOLDER, DPDT-2NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 61 Series Datasheet +1

61-8420.22

Active

EAO

CONTACT BLOCK, 5 A, 250 V, 2 POLE, 61 SERIES, SOLDER, DPDT-2NO

Deep-Dive with AI

DocumentsDatasheet 61 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	61-8420.22	61-8420 Series

(Select First, Then Apply Filters) Compatible Series	EAO, 61	EAO, 61
Circuit	DPST-NO	DPST-NO
Contact Rating @ Voltage	250 VAC, 5 A	5 - 250 VAC
Requires	Switch Body	Switch Body
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm

61-8420 Series

CONTACT BLOCK, 5 A, 250 V, 2 POLE, QUICK CONNECT, SOLDER, DPDT-NO

Part	Termination Style	Termination Style	Termination Style	(Select First, Then Apply Filters) Compatible Series	Circuit	Requires	Contact Rating @ Voltage
EAO 61-8420.12	0.11 in	Quick Connect, Solder	2.8 mm	61, EAO	DPST-NO	Switch Body	5 A, 250 VAC
EAO 61-8420.22	0.11 in	Quick Connect, Solder	2.8 mm	61, EAO	DPST-NO	Switch Body	5 A, 250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.37
		10	$ 17.59
		25	$ 16.80
		50	$ 15.91
		100	$ 15.32
		250	$ 14.33
		500	$ 12.23
Newark	Each	1	$ 20.06
		5	$ 18.46
		10	$ 17.06
		25	$ 15.44
		50	$ 14.25

Description

General part information

61-8420 Series

The 61-8420.22 is a 2-position Switching Element with gold 2NO contacts, solder termination and snap-action function. The switching element is designed for use with 61 series pushbutton, keylock and selector switches.
