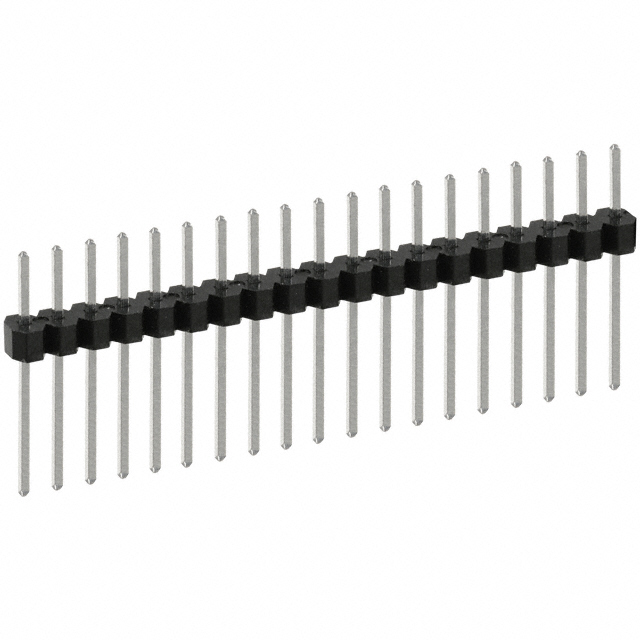

PEC19SADN

Active

Sullins Connector Solutions

CONN HEADER VERT 19POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC19SADN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	10.67 mm
Contact Length - Post [x]	0.42 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	19
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.75 in
Overall Contact Length	19.05 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC19 Series

Part	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Shrouding	Termination	Insulation Height	Insulation Height	Contact Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Insulation Material	Current Rating (Amps)	Connector Type	Overall Contact Length	Overall Contact Length	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PEC19DAEN	All	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	38	Unshrouded	Solder	0.1 in	2.54 mm	Male Pin	13.21 mm	0.52 "	UL94 V-0	Push-Pull	2.54 çm	100 çin	2	0.23 in	5.84 mm	Phosphor Bronze	Black	2.54 µm	100 µin	Tin	Polybutylene Terephthalate (PBT)	3 A	Breakaway Header	0.85 in	21.59 mm	Through Hole	125 °C	-65 ░C	Board to Board Cable
Sullins Connector Solutions PEC19SGAN	All	0.1 in	2.54 mm	Square			19	Unshrouded	Solder	0.14 in	3.56 mm	Male Pin	2.54 mm	0.1 in	UL94 V-0	Push-Pull	2.54 çm	100 çin	1	0.318 "		Phosphor Bronze	Black	2.54 µm	100 µin	Tin	Polybutylene Terephthalate (PBT)	3 A	Breakaway Header			Through Hole Right Angle	125 °C	-65 ░C	Board to Board Cable	8.08 mm
Sullins Connector Solutions PEC19SBEN	All	0.1 in	2.54 mm	Square			19	Unshrouded	Solder	0.14 in	3.56 mm	Male Pin	12.7 mm	0.5 in	UL94 V-0	Push-Pull	2.54 çm	100 çin	1	0.23 in	5.84 mm	Phosphor Bronze	Black	2.54 µm	100 µin	Tin	Polybutylene Terephthalate (PBT)	3 A	Breakaway Header			Through Hole Right Angle	125 °C	-65 ░C	Board to Board Cable
Sullins Connector Solutions PEC19SADN	All	0.1 in	2.54 mm	Square			19	Unshrouded	Solder	0.1 in	2.54 mm	Male Pin			UL94 V-0	Push-Pull	2.54 çm	100 çin	1	0.23 in	5.84 mm	Phosphor Bronze	Black	2.54 µm	100 µin	Tin	Polybutylene Terephthalate (PBT)	3 A	Breakaway Header	0.75 in	19.05 mm	Through Hole	125 °C	-65 ░C	Board to Board Cable		10.67 mm	0.42 in
Sullins Connector Solutions PEC19SAGN	All	0.1 in	2.54 mm	Square			19	Unshrouded	Solder	0.1 in	2.54 mm	Male Pin			UL94 V-0	Push-Pull	2.54 çm	100 çin	1	0.23 in	5.84 mm	Phosphor Bronze	Black	2.54 µm	100 µin	Tin	Polybutylene Terephthalate (PBT)	3 A	Breakaway Header	1.05 in	26.67 mm	Through Hole	125 °C	-65 ░C	Board to Board Cable		18.29 mm	0.72 "
Sullins Connector Solutions PEC19SBBN	All	0.1 in	2.54 mm	Square			19	Unshrouded	Solder	0.14 in	3.56 mm	Male Pin			UL94 V-0	Push-Pull	2.54 çm	100 çin	1	0.23 in	5.84 mm	Phosphor Bronze	Black	2.54 µm	100 µin	Tin	Polybutylene Terephthalate (PBT)	3 A	Breakaway Header			Through Hole Right Angle	125 °C	-65 ░C	Board to Board Cable		5.08 mm	0.2 in
Sullins Connector Solutions PEC19DADN	All	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	38	Unshrouded	Solder	0.1 in	2.54 mm	Male Pin			UL94 V-0	Push-Pull	2.54 çm	100 çin	2	0.23 in	5.84 mm	Phosphor Bronze	Black	2.54 µm	100 µin	Tin	Polybutylene Terephthalate (PBT)	3 A	Breakaway Header	0.75 in	19.05 mm	Through Hole	125 °C	-65 ░C	Board to Board Cable		10.67 mm	0.42 in
Sullins Connector Solutions PEC19DBAN	All	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	38	Unshrouded	Solder	0.24 in	6.1 mm	Male Pin	2.54 mm	0.1 in	UL94 V-0	Push-Pull	2.54 çm	100 çin	2	0.23 in	5.84 mm	Phosphor Bronze	Black	2.54 µm	100 µin	Tin	Polybutylene Terephthalate (PBT)	3 A	Breakaway Header			Through Hole Right Angle	125 °C	-65 ░C	Board to Board Cable
Sullins Connector Solutions PEC19SFAN	All	0.1 in	2.54 mm	Square			19	Unshrouded	Solder	0.1 in	2.54 mm	Male Pin			UL94 V-0	Push-Pull	2.54 çm	100 çin	1	0.318 "		Phosphor Bronze	Black	2.54 µm	100 µin	Tin	Polybutylene Terephthalate (PBT)	3 A	Breakaway Header	0.538 "	13.67 mm	Through Hole	125 °C	-65 ░C	Board to Board Cable	8.08 mm	3.05 mm	0.12 in
Sullins Connector Solutions PEC19SAFN	All	0.1 in	2.54 mm	Square			19	Unshrouded	Solder	0.1 in	2.54 mm	Male Pin	15.75 mm	0.62 in	UL94 V-0	Push-Pull	2.54 çm	100 çin	1	0.23 in	5.84 mm	Phosphor Bronze	Black	2.54 µm	100 µin	Tin	Polybutylene Terephthalate (PBT)	3 A	Breakaway Header	0.95 in	24.13 mm	Through Hole	125 °C	-65 ░C	Board to Board Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.47
		10	$ 1.28
		100	$ 1.14
		500	$ 0.95
		1000	$ 0.82
		5000	$ 0.78

Description

General part information

PEC19 Series

Connector Header Through Hole 19 position 0.100" (2.54mm)
